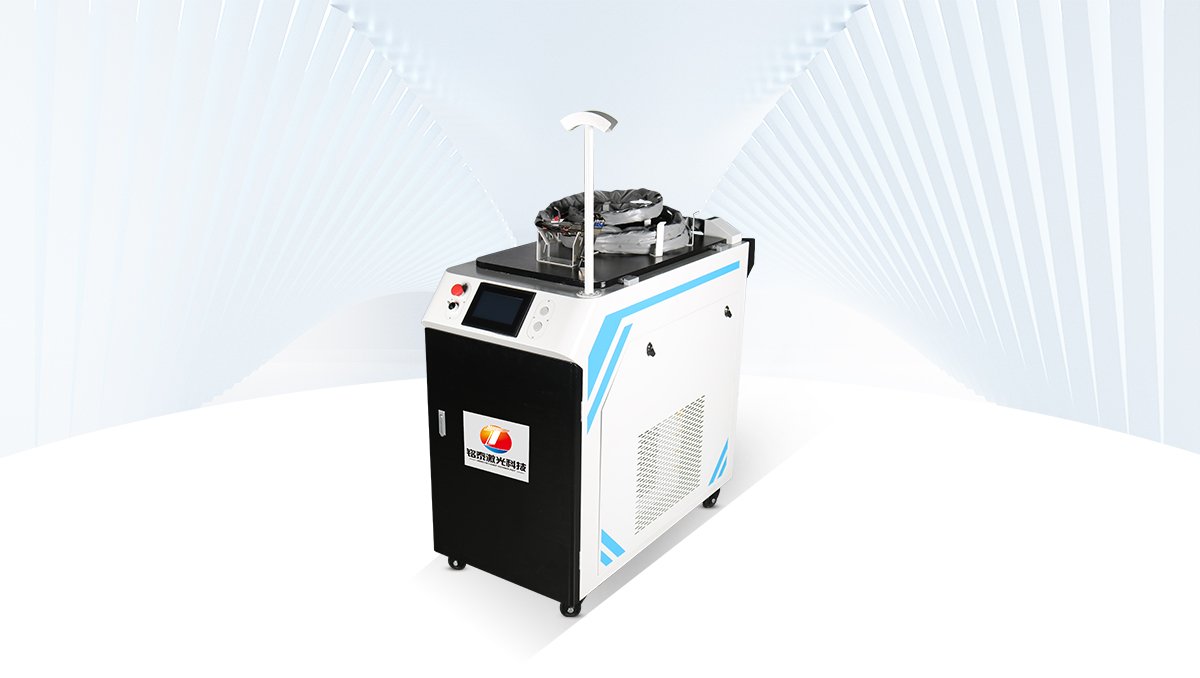

The compact continuous laser rust removal and cleaning machine is an efficient and environmentally friendly industrial cleaning device, specifically designed to remove rust, dirt, and coatings from metal surfaces. It uses continuous laser output technology to quickly and evenly remove large areas of rust and dirt, achieving high cleaning efficiency. The device is small in size and lightweight, making it easy to move and operate, suitable for various industrial sites. Its laser energy is adjustable to meet the cleaning needs of different materials and rust levels without damaging the substrate. The machine does not require chemical agents, is pollution-free, and easy to operate. It is widely used in fields such as mechanical manufacturing, automotive repair, and shipbuilding, making it an ideal choice for modern industrial cleaning.
Detailed Description of the Compact Continuous Laser Rust Removal and Cleaning Machine
1. Structure
The compact continuous laser rust removal and cleaning machine is designed for ease of operation and mobility. Its main components include:
- Laser Source: Provides high-power continuous laser output, suitable for large-area rust removal.
- Handheld Cleaning Head: Lightweight design weighing less than 0.85kg, suitable for long-term handheld operation.
- Fiber Optic Cable: Transfers the laser from the main unit to the cleaning head, ensuring efficient energy transmission.
- Water Cooling System: Built-in water cooling system with a compact size and stable cooling performance, ensuring long-term operation of the device.
- Control System: Equipped with a touchscreen and operation buttons, supporting multiple language options and adjustable parameters such as laser power and scanning speed.
2. Main Features
- High-Efficiency Rust Removal: Continuous laser output with strong energy for efficient rust removal.
- Non-Contact Cleaning: No mechanical contact, avoiding damage to the substrate.
- Environmentally Friendly: No chemical agents required; cleaning waste is solid powder, easy to collect.
- User-Friendly Operation: Handheld design with lightweight and flexible operation, suitable for complex shapes and confined spaces.
- Integrated Design: Plug-and-play, supports automated operation.
- Durability: Laser source with a lifespan of up to 100,000 hours.
3. Performance
- Cleaning Effectiveness: Rapid removal of rust, paint, and oil without damaging the surface.
- Adjustable Parameters: Laser power, scanning speed, and scanning width can be adjusted according to requirements.
- Material Compatibility: Suitable for a wide range of metals, including steel, aluminum alloy, and stainless steel.
- Scanning Modes: Multiple scanning modes available to meet different cleaning needs.
- Cooling Method: Water cooling to ensure stable operation of the device.
4. Application Scope
The compact continuous laser rust removal and cleaning machine is widely used in the following fields:
- Metal Surface Treatment: Removal of rust, paint, and coatings.
- Mechanical Manufacturing: Cleaning of molds and mechanical components.
- Automotive Manufacturing: Cleaning of automotive parts.
- Shipbuilding: Removal of rust and oil from ship hulls.
- Railway and Transportation: Cleaning of railway tracks and equipment.
- Aerospace: Cleaning of aircraft components.
5. Technical Specifications
| Parameter Name | Parameter Value |
|---|---|
| Laser Power | 1000W/1500W/2000W |
| Laser Wavelength | 1064nm |
| Cooling Method | Water cooling |
| Scanning Modes | Multiple modes (customizable) |
| Cleaning Head Weight | <0.85kg |
| Fiber Length | 10 meters |
| Cleaning Speed | ≤40 sq. meters/hour |
| Machine Dimensions (L×W×H) | 860mm×410mm×700mm |
| Machine Weight | 75kg |
| Packed Dimensions (L×W×H) | 1060mm×560mm×1100mm |
| Packed Weight | 120kg |
The compact continuous laser rust removal and cleaning machine, with its efficiency, environmental friendliness, and portability, is an ideal choice for modern industrial cleaning.
The production effect of the Compact Continuous Laser Rust Removal and Cleaning Machine
