Heavy-duty slat chain conveyors are essential for automobile assembly and welding workshops, with selection relying on comprehensive consideration of core parameters to ensure stable and efficient operation.

Firstly, load calculation is fundamental. Single-station load, including workpieces, tooling and auxiliary equipment (usually 2-5 tons per station), requires a 10%-20% margin for eccentric loads. Total load, summing up all station loads, chain weight and accessories, often reaches 100 tons for large lines, with 1.2-1.5 times margin for curves and climbing sections.

Operating speed should match production rhythm, typically 0.5-3m/min for assembly lines and 0.2-1m/min for welding lines, with acceleration controlled at 0.1-0.3m/s² for intermittent operation.

For reducers, hardened tooth surface cylindrical gear types are preferred, with output torque and reduction ratio accurately matched to load and speed, paired with frequency conversion brake motors.

Safety redundancy is critical, with core components rated at 1.5-2.0 times the calculated load, 8-10 year design life, and multiple protections like overload limiters and chain breakage sensors. Material selection (high-strength alloy steel for chains) and maintenance-friendly design also ensure long-term reliability in automotive production environments.

Key Selection Points for Heavy-Duty Slat Chain Conveyors for Assembly

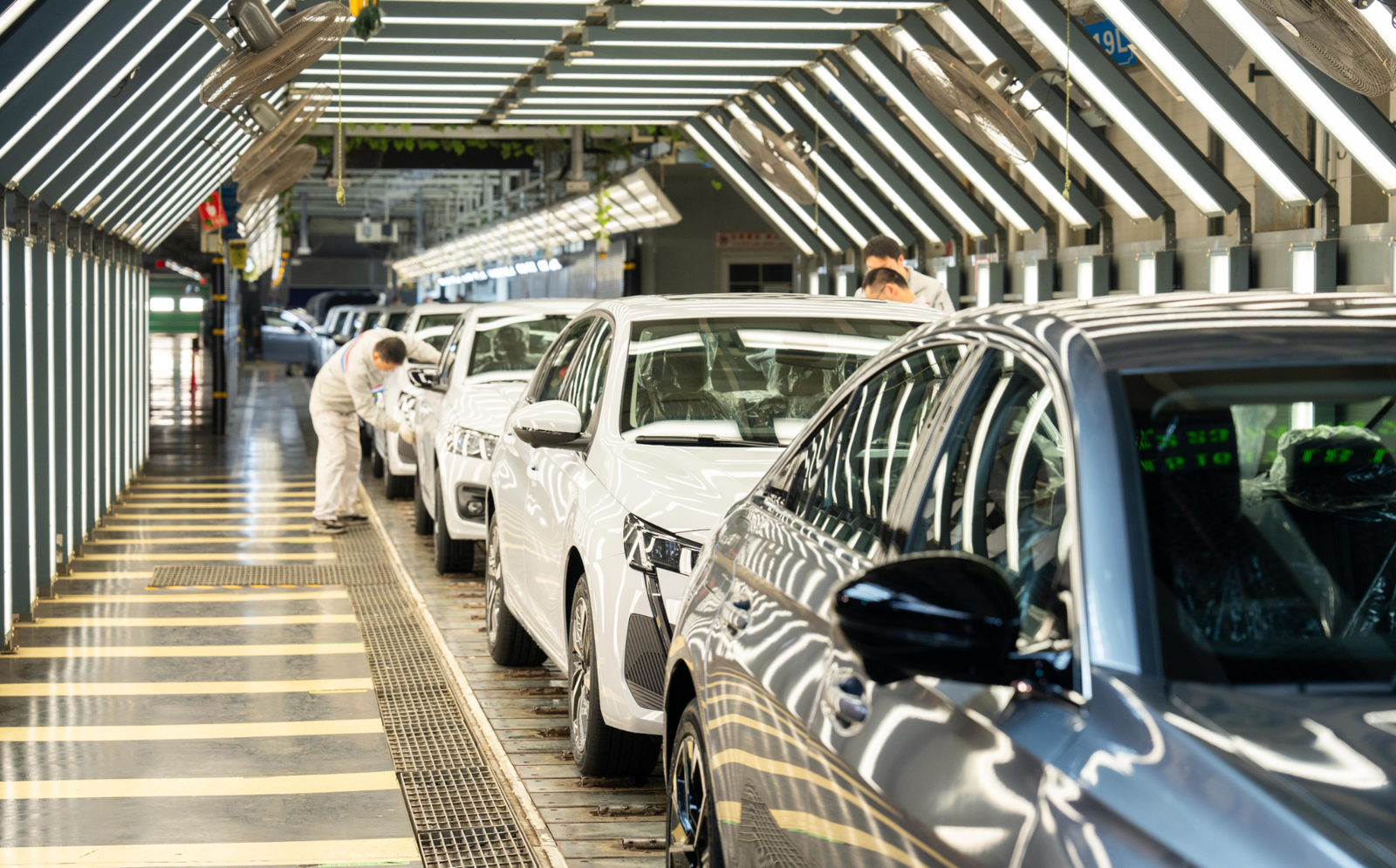

Heavy-duty slat chain conveyors are core conveying equipment in automobile factories (such as final assembly workshops and welding workshops). Their selection requires comprehensive consideration of core factors including station load, total load, operating speed, reducer matching, and safety redundancy, which directly affect production efficiency, equipment stability, and service life. Combined with application scenarios in automobile factories, the key selection points are detailed as follows:

1. Calculation of Core Load Parameters: Foundation of Selection

Load is the core basis for selecting heavy-duty slat chain conveyors. It is necessary to accurately calculate station load and total load to ensure that the equipment’s bearing capacity meets production requirements.

1.1 Station Load Calculation

• In automobile factories, the load of a single station shall cover the weight of workpieces (e.g., a complete vehicle body weighs about 1.5-3 tons), the weight of tooling fixtures (0.5-1 ton), and the weight of auxiliary equipment (such as welding robots and tightening machines). The total load of a single station is usually 2-5 tons.
• During selection, the calculation shall be based on the maximum station load. Meanwhile, the eccentric load caused by workpiece placement (such as the offset of the vehicle body’s center of gravity) shall be considered, and an additional 10%-20% load margin shall be added to avoid overload of local chains or guide rails.

1.2 Total Load Calculation

• Total load = sum of loads of all stations + weight of the conveying chain itself + weight of accessory components (such as stoppers and pallets). The total load of an automobile final assembly line can reach tens to hundreds of tons. For example, a final assembly line with 20 stations may have a total load exceeding 100 tons.
• The total load calculation shall be adjusted according to the layout of the conveyor line (straight line, curve, climbing section): for curve sections, the additional load on the chain caused by centrifugal force shall be considered; for climbing sections, the traction force to overcome gravity shall be increased, and the traction force requirement is usually calculated as 1.2-1.5 times the total load.

2. Operating Speed Matching: Balancing Efficiency and Precision

The operating speed of heavy-duty slat chain conveyors shall match the production rhythm of automobile factories while meeting the precision requirements of assembly processes, to avoid workpiece shaking or assembly errors caused by excessive speed.

2.1 Basic Speed Selection

• The operating speed of automobile final assembly lines is usually 0.5-3m/min (continuous operation mode). Due to the need for precise positioning with robots, the speed of welding lines can be as low as 0.2-1m/min.
• If the intermittent operation mode is adopted (assembly after the station stops stably), the start-stop acceleration shall be considered, which is controlled at 0.1-0.3m/s² to avoid damage to chains and drive components caused by impact loads.

2.2 Matching of Speed and Production Rhythm

• Calculate the production rhythm according to the single-shift production capacity of the automobile factory: for example, if the single-shift production capacity is 300 units and the takt time is 1.6 minutes per unit, the conveyor line shall complete the movement of workpieces from one station to the next within the takt time, while reserving 30%-50% time margin to cope with production fluctuations.

2.3 Speed Adjustment for Special Scenarios

• The speed shall be reduced in climbing sections (e.g., below 0.5m/min) to reduce friction between the chain and guide rails; the speed in curve sections shall be ≤1m/min to avoid workpiece offset caused by centrifugal force.

3. Reducer Selection: Core Matching of the Drive System

The reducer is the power core of heavy-duty slat chain conveyors, which needs to be accurately matched with the motor, load, and speed to ensure stable and efficient power output.

3.1 Selection of Reducer Type

• For heavy-duty slat chain lines in automobile factories, hardened tooth surface cylindrical gear reducers are preferred. They have strong bearing capacity, high transmission efficiency (over 95%), and long service life, suitable for scenarios with large torque and low speed. If space is limited, planetary gear reducers can be selected, which are compact in structure and high in torque density.
• Ordinary worm gear reducers should be avoided, as they have low transmission efficiency (70%-80%) and are prone to heating, which cannot meet the long-term operation requirements of heavy loads.

3.2 Parameter Matching of Reducers

• Torque matching: The output torque of the reducer shall be ≥ (total traction force × pitch circle radius of the sprocket) × safety factor (1.5-2.0). For example, if the total traction force is 100kN and the pitch circle radius of the sprocket is 0.5m, the output torque of the reducer shall be ≥75kN·m (based on a safety factor of 1.5).
• Speed matching: Reduction ratio of the reducer = rated motor speed ÷ sprocket speed of the conveyor line. The rated motor speed is usually 1500rpm. If the sprocket speed of the conveyor line is 5rpm, the reduction ratio shall be 300:1 to ensure that the output speed accurately matches the requirements.

3.3 Linkage Between Motor and Reducer

• Frequency conversion motors are selected to realize stepless speed regulation, adapting to different production rhythms. Meanwhile, brake motors are equipped to ensure precise positioning during shutdown and avoid workpiece sliding.

4. Safety Redundancy Design: Ensuring Long-Term Stable Operation

Safety redundancy of heavy-duty slat chain conveyors is crucial for continuous production in automobile factories. Sufficient margins shall be reserved in load, service life, and protection to reduce failure risks.

4.1 Load Redundancy

• The rated load of core components such as chains, guide rails, and sprockets shall be ≥1.5-2.0 times the calculated load. For example, for a conveyor line with a calculated load of 100 tons, the rated load of the chain shall be not less than 150 tons to cope with sudden overloads (such as workpiece falling).

4.2 Service Life Redundancy

• The design life of core components (chains, reducers, motors) shall be ≥8-10 years. Meanwhile, considering the 24-hour continuous operation condition of automobile factories, the calculation shall be based on an annual operation time of 8000 hours to ensure that the service life meets the production cycle.

4.3 Safety Protection Redundancy

• Equip with multiple safety protection devices: overload protection (torque limiter), emergency stop buttons, chain breakage detection sensors, workpiece positioning deviation alarm devices, etc.
• For special environments in automobile factories (such as sparks in welding workshops and oil stains in final assembly workshops), protective treatment shall be carried out on the conveyor line: chains are coated with anti-rust and wear-resistant coatings, and motors and reducers are equipped with dust covers and oil-proof covers.

5. Other Key Selection Points

5.1 Slat Chain Material and Structure

• High-strength alloy steel is preferred for heavy-duty slat chains in automobile factories. The chain pitch is selected according to the load: pitches of 100-200mm are optional for loads below 10 tons, 200-300mm for loads of 10-50 tons, and customized large-pitch heavy-duty chains for loads above 50 tons.
• The slat chain structure shall consider anti-skid design, with anti-skid patterns added on the surface to avoid sliding of workpieces such as vehicle bodies during conveying.

5.2 Guide Rail and Support Design

• Guide rails are made of wear-resistant cast iron or quenched steel to reduce wear during chain operation; support beams are made of H-beams or I-beams to ensure overall rigidity and avoid deformation of the conveyor line due to excessive load.

5.3 Maintenance Convenience

• During selection, maintenance space shall be reserved, such as setting chain tensioning devices and guide rail lubrication systems for daily maintenance. Key components (such as reducers and motors) shall have quick disassembly functions to shorten fault repair time.

6. Reference to Typical Cases in Automobile Factories

Taking the heavy-duty slat chain conveyor line in a final assembly workshop of an automobile factory as an example, its selection parameters are as follows:

• Station load: maximum load of a single station is 4 tons (including 2.5 tons of vehicle body + 1.5 tons of tooling);
• Total load: 25 stations with a total load of 120 tons (including chains and accessory components);
• Operating speed: continuous operation speed is 1.5m/min, and start-stop acceleration for intermittent operation is 0.2m/s²;
• Reducer: hardened tooth surface cylindrical gear reducer with an output torque of 80kN·m and a reduction ratio of 315:1, matched with a 37kW frequency conversion brake motor;
• Safety redundancy: the rated torque of the reducer is 120kN·m, and multiple safety devices such as overload protection and chain breakage detection are equipped.
