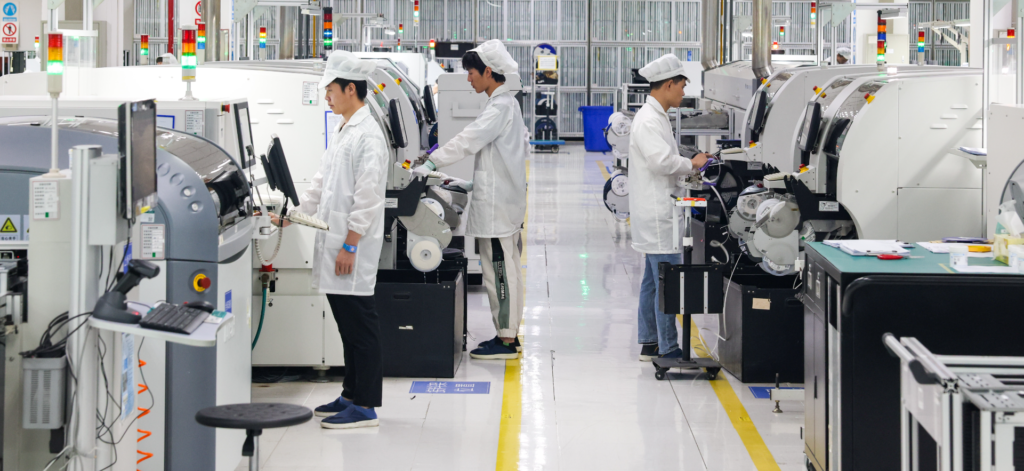

The SMT Assembly Line Process and Key Points for PABA
The SMT assembly line process for PCBA production involves several key steps: solder paste printing, component placement, reflow soldering, and inspection/rework. Precision is crucial at each stage, from stencil fabrication and printing parameters to placement accuracy and temperature control during reflow soldering. Quality control measures, including material management, equipment maintenance, and rigorous inspections using SPI, AOI, and X-ray technologies, ensure high reliability. Process optimization through DOE and CPK analysis further enhances stability. These integrated efforts guarantee high-quality PCBA products with minimized defects.
Detailed Itemized Explanation of the SMT Assembly Line Process and Key Points for PCBA Production
I. SMT Assembly Line Process Flow
1. Solder Paste Printing
- Stencil Fabrication: Laser-cut stencils are made based on the PCB design files, with tolerances controlled within ±15μm.
- Printing Parameters:
- Squeegee Pressure: 5-15kg, allowable deviation ±0.5kg.
- Printing Speed: 20-80mm/s, allowable deviation ±5mm/s.
- Separation Speed: 0.5-2mm/s.
- Quality Inspection: Solder Paste Inspection (SPI) is used to check the quality of solder paste printing, ensuring no offsets, bridging, insufficient solder, or solder bridging defects.
2. Component Placement
- Placement Machine: High-speed placement machines equipped with vision alignment systems can accurately position 0201 components (0.6×0.3mm) with a placement accuracy of ±25μm@3σ.
- Feeder Management: RFID technology is used to automatically verify the batch and station information of components.
- Placement Pressure: Controlled within the range of 0.5-2N to avoid component damage.
- Nozzle Selection: For components smaller than 0201, vacuum nozzles combined with flexible placement heads are recommended.
3. Reflow Soldering
- Equipment and Temperature Profile: An 8-zone nitrogen reflow oven is used, with precise temperature control to achieve the optimal soldering profile. The preheat zone slope is controlled at 1-3℃/s, the peak temperature is maintained between 235-245℃, and the liquid phase time is strictly controlled within 60-90 seconds.
- Temperature Monitoring: Ensure uniform temperature during the soldering process, with a temperature difference controlled within ±2℃.
4. Inspection and Rework
- AOI Inspection: Multi-spectral imaging technology is used to detect component offsets as small as 0.1mm, with a detection rate of ≥99.7%.
- X-Ray Inspection: Penetrates BGA packaging to analyze solder ball defects as small as 0.05mm.
- Rework: Intelligent rework stations integrate hot air reflow and vacuum extraction functions, with a rework pass rate of up to 98%.
II. SMT Assembly Line Process Table
| Process Flow | Technical Points | Key Equipment | Precision Standards |
|---|---|---|---|
| Solder Paste Printing | Stencil aperture precision, squeegee pressure control | Fully automatic printer | Thickness error ±5μm |
| Component Placement | Nozzle selection, placement height compensation | High-speed placement machine | Position deviation ≤0.04mm |
| Reflow Soldering | Temperature zone gradient setting, peak temperature control | Nitrogen-protected reflow oven | Temperature difference ±2℃ |
| Optical Inspection | Grayscale contrast algorithm, defect judgment threshold | 3D SPI/AOI composite inspection system | Detection rate ≥99.7% |
III. Quality Control in the Production Process
1. Material Management
- MSL Level Control: Moisture-sensitive components (MSD) must be assembled within a specified time after opening. For example, components with a level 6 MSL must be assembled within 12 hours after opening.
- Temperature and Humidity Control: Storage environment temperature 23±3℃, humidity 40-60%RH.
- Material Traceability: Two-way traceability from raw materials to finished products is achieved through QR codes.
2. Equipment Maintenance
- Placement Machine: Clean the optical lens daily, calibrate placement accuracy monthly.
- Reflow Oven: Test the temperature profile weekly to ensure temperature zone control accuracy.
- Solder Paste Printer: Calibrate stencil alignment monthly.
3. Quality Inspection
- First Article Inspection (FAI): Conduct a detailed inspection of the first piece before production begins.
- In-process Sampling: Sampling is carried out according to the AQL standard.
- Final Inspection: Ensure that the outgoing products meet the zero-defect standard.
4. Process Optimization
- DOE Experimental Design: Optimize the combination of process parameters.
- CPK Process Capability Index: Evaluate process stability.
By implementing the above process flow, process table, and quality control measures, the overall yield of the SMT assembly line can be effectively improved, ensuring the quality and reliability of PCBA products.
