The Structure Manufacturing Process and Production Line of Agricultural Drones

Agricultural drones are designed with lightweight yet robust materials to ensure stability and efficiency. Their structure includes an airframe, power system, flight control system, and spraying system, tailored for tasks like pesticide application. The manufacturing process involves material processing, component assembly, system integration, and rigorous quality testing to ensure reliability. On the production line, raw materials are stored and managed efficiently. Components are precisely machined, assembled in a controlled environment, and tested for performance. The finished drones are then stored and distributed. This streamlined process ensures agricultural drones meet high standards for use in modern farming.

The Structure of Agricultural Drones

• Airframe Structure: The airframe of agricultural drones is typically made from lightweight yet high-strength materials such as carbon fiber composites or high-strength aluminum alloys. The design focuses on structural stability and load-bearing capacity to support devices like pesticide spraying equipment and cameras. The streamlined shape of the airframe reduces air resistance during flight, improving flight efficiency.
• Power System: The power system is a core component of agricultural drones. Common power systems include electric and fuel-powered options. Electric drones usually feature high-energy-density lithium batteries that drive the rotors via electric motors to generate lift and thrust. Fuel-powered drones, on the other hand, use small internal combustion engines as their power source, offering the advantage of longer flight durations.
• Flight Control System: The flight control system acts as the “brain” of agricultural drones, responsible for receiving operational commands and controlling the drone’s flight attitude and trajectory. It typically includes sensors (such as gyroscopes, accelerometers, and barometers), a flight controller, and actuators (such as motors and servos). The flight control system can achieve autonomous flight, automatic obstacle avoidance, and precise positioning.
• Spraying System: The spraying system is a key component for pesticide application in agricultural drones. It usually consists of a pesticide tank, nozzles, pipes, and a spraying controller. The tank stores the pesticide, while the nozzles are designed in various shapes and spraying patterns according to different crops and application requirements. The spraying controller automatically adjusts the spraying rate based on flight speed and altitude to ensure even pesticide distribution.

Manufacturing Process of Agricultural Drones

• Material Processing: Manufacturing agricultural drones involves processing various materials. For metallic materials such as aluminum alloy, precision machining using CNC machining centers is typically employed to ensure the dimensional accuracy and surface quality of the components. For composite materials like carbon fiber, molding and curing processes are used to achieve the desired strength and shape.
• Component Assembly: Component assembly is a crucial step in manufacturing agricultural drones. First, the machined components are cleaned and inspected to ensure they meet quality requirements. Then, the components are assembled onto the airframe according to the design drawings and technical specifications. During assembly, strict control of assembly accuracy is maintained to ensure that the connections between components are secure and reliable.
• System Integration and Testing: System integration involves installing various subsystems (such as the power system, flight control system, and spraying system) onto the drone and connecting and testing them. During testing, the flight performance and spraying performance of the drone are evaluated and calibrated to ensure proper operation. For example, flight tests are conducted to adjust the parameters of the flight control system for stable flight attitude, and spraying tests are performed to fine-tune the spraying system parameters for optimal spraying results.
• Quality Inspection and Testing: Quality inspection is an essential step to ensure the quality of agricultural drones. Throughout the manufacturing process, comprehensive quality checks are conducted on raw materials, components, and finished products. Inspection methods include visual inspection, dimensional measurement, and performance testing. Products that do not meet quality standards are promptly reworked or scrapped to ensure that the agricultural drones produced are reliable.

Production Line of Agricultural Drones

• Raw Material Warehouse: The raw material warehouse is where the various materials needed to manufacture agricultural drones are stored. The warehouse should be organized with materials categorized by type, specification, and performance, and a robust inventory management system should be in place to ensure timely replenishment of materials and the smooth operation of the production line.
• Machining Workshop: The machining workshop is the primary location for processing drone components. It is equipped with advanced machining equipment such as CNC lathes, milling machines, and laser cutting machines, which are used to process raw materials. The layout of the machining workshop should be carefully planned to improve production efficiency and reduce costs.

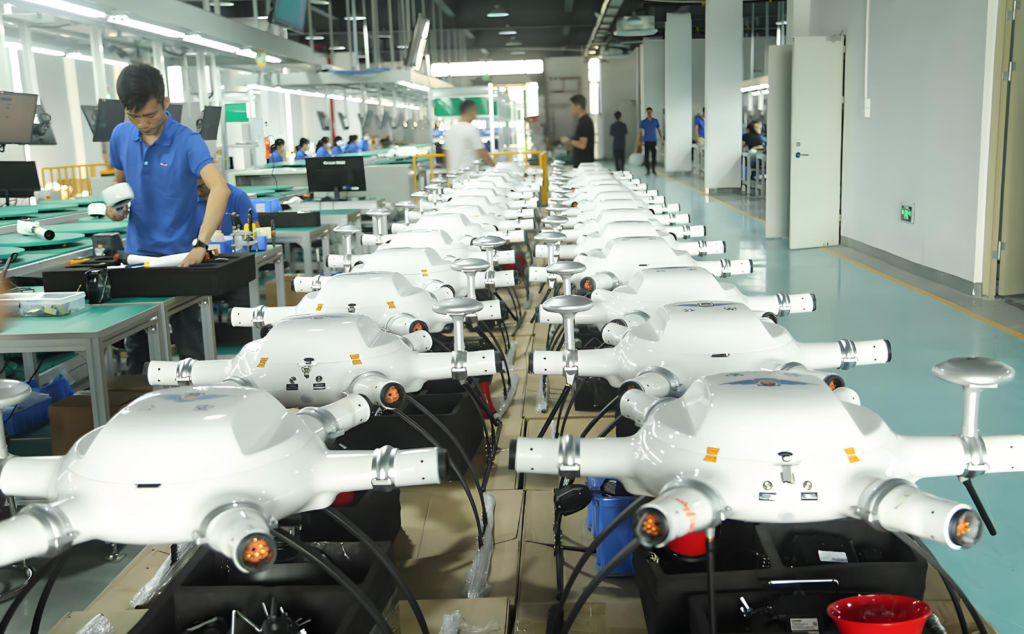

• Assembly Workshop: The assembly workshop is where the processed components are assembled into agricultural drones. The workshop is typically divided into multiple workstations, each responsible for a specific assembly process. The assembly workshop should be equipped with specialized assembly tools and equipment to ensure smooth assembly operations. Additionally, a strict quality control system should be established to monitor the entire assembly process.
• Testing Workshop: The testing workshop is an important location for quality inspection of agricultural drones. It is equipped with various testing devices such as flight simulation test benches and spraying performance testing equipment, which are used to evaluate the performance of agricultural drones. The testing workshop should conduct inspections strictly in accordance with quality standards to ensure that the drones meet design requirements and user needs.
• Finished Goods Warehouse: The finished goods warehouse is where the completed agricultural drones are stored. The warehouse should be organized with products categorized by model, specification, and batch, and a comprehensive inventory management system should be in place to facilitate timely shipping and track product distribution.
