Y Series Asynchronous Motor Assembly Production Line
The Y Series Asynchronous Motor Assembly Production Line is a highly automated system designed to manufacture high-quality three-phase asynchronous motors efficiently. The process includes stator core stamping, winding insertion, insulation treatment, rotor core stamping, rotor winding insertion, end ring welding, dynamic balancing, and final assembly with housing, bearings, end covers, and terminal boxes. Utilizing automated conveyors, robots, and precision testing equipment, this line ensures high precision, efficiency, and quality. It meets industrial demands for performance and reliability, supporting flexible production of various motor models.

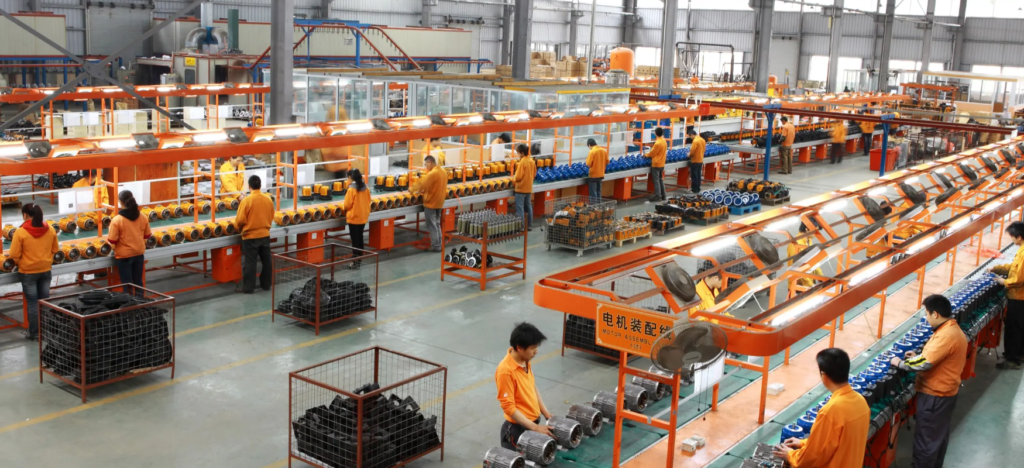

Y Series Asynchronous Motor Assembly Production Line
1. Process Flow
The Y Series asynchronous motor is a widely used three-phase asynchronous motor, and its assembly production line typically includes the following key process steps:
- Stator Manufacturing
- Stator Core Stamping: Manufacturing the stator core through stamping to ensure dimensional accuracy.
- Winding Insertion: Inserting insulated wire windings into the stator core slots to ensure electrical connections.
- Winding Insulation Treatment: Insulating the windings to prevent short circuits and leakage.
- Stator Assembly: Assembling the windings and core into a complete stator to ensure structural stability.
- Rotor Manufacturing
- Rotor Core Stamping: Manufacturing the rotor core through stamping.
- Rotor Winding Insertion: Inserting conductive bars into the rotor core slots to form the rotor winding.
- Rotor End Ring Welding: Welding the rotor end rings to ensure the conductive bars are securely connected.
- Rotor Dynamic Balancing Test: Conducting dynamic balancing tests and adjustments on the rotor to ensure smooth rotation.
- Motor Final Assembly
- Housing Assembly: Assembling the motor housing with the stator, rotor, and other components to ensure the overall structural integrity.
- Bearing Installation: Installing front and rear bearings to ensure the rotor can rotate freely.
- End Cover Installation: Installing the motor end covers to protect internal components.
- Terminal Box Installation: Connecting the motor windings to the external power supply to ensure electrical connections.
- Final Testing: Conducting End of Line (EOL) tests to ensure the motor meets performance standards.
2. Assembly Line Composition
The assembly line for Y Series asynchronous motors typically includes the following equipment and systems:
- Conveying System: Using belt or chain conveyors to achieve automated transmission of components.
- Automated Assembly Robots: Used for automatic positioning and assembly of components to improve assembly accuracy and efficiency.
- Winding Insertion Equipment: Automatically inserting windings to ensure accurate winding positions.
- Welding Equipment: Used for welding rotor end rings to ensure secure connections of conductive bars.
- Dynamic Balancing Testing Equipment: Conducting high-precision dynamic balancing tests on rotors.
- EOL Testing System: Conducting final performance tests on assembled motors.
3. Technical Parameters Table
| Process Step | Main Equipment | Function |
|---|---|---|
| Stator Manufacturing | Stator Core Stamping Equipment | Manufacturing stator cores |
| Winding Insertion Equipment | Inserting insulated wire windings | |
| Insulation Treatment Equipment | Insulating windings | |
| Rotor Manufacturing | Rotor Core Stamping Equipment | Manufacturing rotor cores |
| Rotor Winding Insertion Equipment | Inserting conductive bars | |
| Welding Equipment | Welding rotor end rings | |
| Dynamic Balancing Testing Equipment | Rotor dynamic balancing tests | |
| Motor Final Assembly | Housing Assembly Equipment | Assembling motor housings |
| Bearing Installation Equipment | Installing front and rear bearings | |
| End Cover Installation Equipment | Installing end covers | |
| Terminal Box Installation Equipment | Connecting windings to power supply | |
| EOL Testing Equipment | Final performance testing |
4. Advantages
- High Precision: Ensuring precise assembly of components through automated equipment and high-precision testing systems.
- High Efficiency: Reducing manual intervention with automated production lines to increase production efficiency.
- High Quality: Ensuring each motor meets performance standards through the EOL testing system.
- Flexibility: The production line can adapt to the production of various motor models to meet the needs of different customers.
5. Application Case
A motor manufacturing company has adopted a fully automated process for the Y Series asynchronous motor assembly line, achieving full automation from stator manufacturing to motor final assembly. The production line significantly improves production efficiency and product quality through automated equipment and high-precision testing systems, meeting the market’s demand for high-performance motors.
Through the above processes and equipment, the assembly line for Y Series asynchronous motors can achieve efficient and high-precision production, meeting the performance and reliability requirements for industrial applications.
