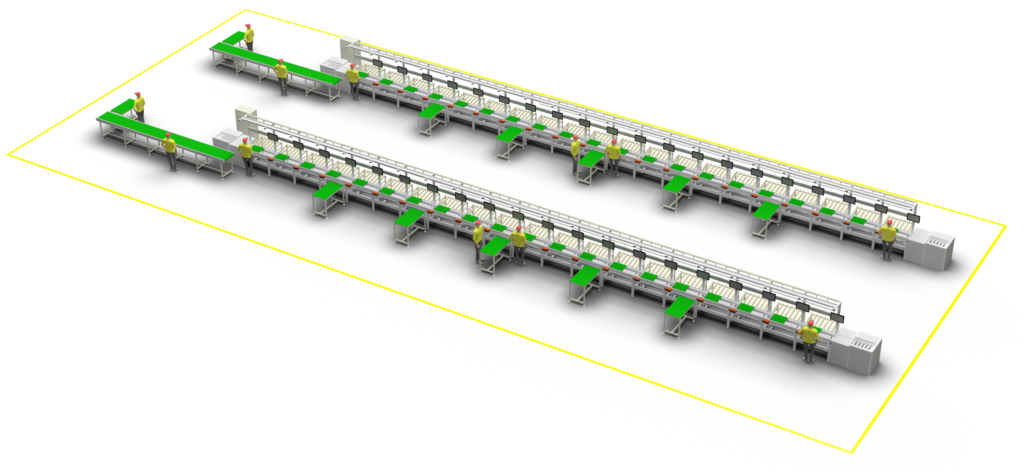

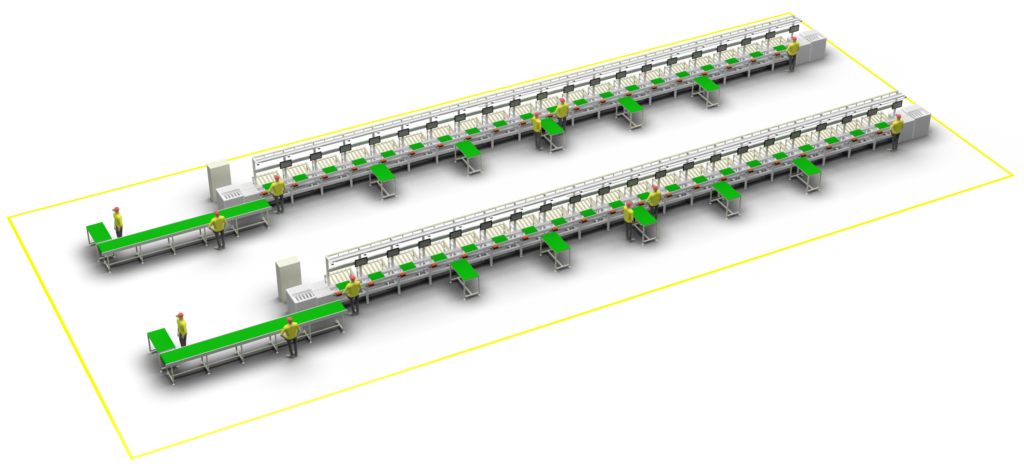

A general-purpose assembly line for small household appliances

Detailed Description of a General-Purpose Small Household Appliance Assembly Line

I. Overview

A general-purpose small household appliance assembly line is a highly flexible, efficient, and automated production system specifically designed for manufacturing a variety of small household appliances. It integrates advanced automation technologies and optimized processes to meet the demands of assembly, inspection, and packaging for different products. This assembly line not only enhances production efficiency but also ensures the consistency and stability of product quality.

II. Main Components

1. Conveyor System

• Conveyor Belts: Made from durable PVC or PU materials, these belts are slip-resistant, wear-resistant, and easy to clean. The speed of the conveyor belts can be adjusted according to product dimensions and production rates, typically ranging from 10 to 100 meters per minute.
• Power and Free Conveyor Chains: Used for rapid product conveyance and precise positioning, ensuring accurate docking at each workstation. The speed of the chains can be infinitely adjusted via frequency converters to adapt to different production requirements.
• Transfer Devices: Equipped with flexible transfer devices that enable 90° or 180° turns, allowing for a more compact and flexible layout of the production line.

1. Workstation Configuration

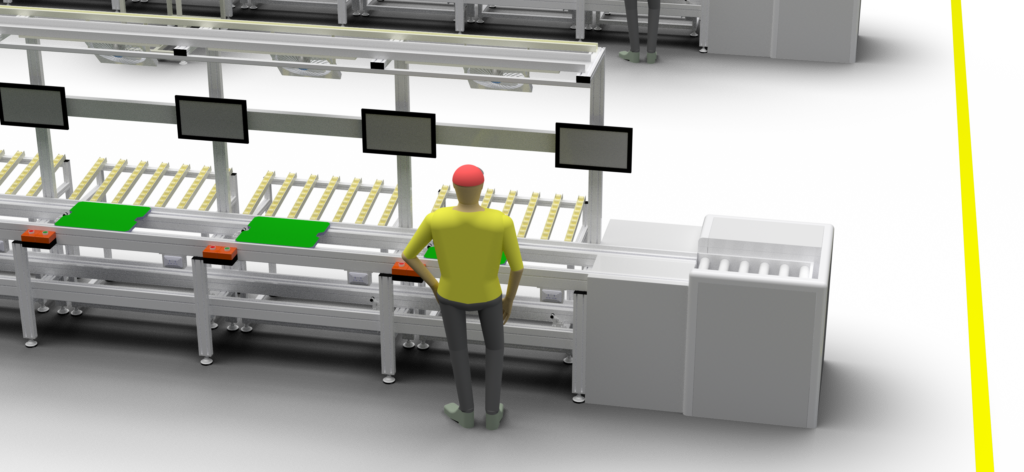

• Assembly Stations: Equipped with a variety of tools and equipment such as electric screwdrivers, pneumatic clamps, and vibratory feeders, these stations are designed to complete the assembly tasks. Each workstation can be customized according to the specific assembly steps of the product, ensuring ease of operation and high efficiency.
• Inspection Stations: Fitted with high-precision inspection equipment, such as CCD vision inspection systems, power testers, and high-voltage testers, these stations are used to inspect the appearance, performance, and safety of the products. Inspection results are fed back to the control center in real time, and non-conforming products are automatically diverted to the rework area.
• Packaging Stations: Responsible for the final packaging of the products, including labeling, boxing, and sealing. Packaging equipment can be adjusted according to product dimensions and packaging requirements, ensuring neat and secure packaging.

1. Automation Equipment

• Robots: Six-axis robots are used to perform complex assembly tasks such as part handling, installation, and welding. With high motion accuracy and a repeat positioning accuracy of ±0.05 mm, robots significantly improve production efficiency and product quality.
• Automatic Feeding Systems: Combining vibratory bowls, hoppers, and conveyor belts, these systems achieve automatic part feeding. The feeding speed can be automatically adjusted according to production needs to ensure a continuous supply of parts.
• Automatic Inspection Equipment: Equipped with various automatic inspection devices such as CCD vision inspection systems for detecting surface defects, power testers for checking electrical performance, and high-voltage testers for verifying safety. These devices can automatically identify and mark non-conforming products, which are then diverted to the rework area.

1. Control System

• PLC Control: Using a Programmable Logic Controller (PLC) as the core control unit, the entire assembly line is automated. The PLC receives signals from various sensors and devices and makes logical judgments and command outputs according to the pre-set programs.
• Human-Machine Interface (HMI): Equipped with a touch screen HMI, operators can conveniently monitor and adjust the operating parameters of the production line, such as conveyor speed, workstation status, and inspection results. The HMI also displays real-time production data and alarm information, facilitating production management and troubleshooting.
• Data Acquisition and Analysis System: Through sensors and inspection equipment installed on the production line, real-time data from the production process is collected, including production speed, pass rate, and equipment operating status. The data acquisition system transmits the collected data to the server for storage and analysis, providing a basis for production management and quality improvement.

III. Process Flow

1. Component Supply

• Components are delivered to various assembly stations via the automatic feeding system. The feeding system automatically adjusts the feeding speed according to production needs to ensure a continuous supply of components.
• For larger or more complex components, manual assistance is used for feeding. Operators place the components in the designated positions, and the feeding system conveys them to the assembly stations.

1. Assembly Process

• Operators or robots at the assembly stations perform assembly operations according to the pre-set process flow. Tools such as electric screwdrivers and pneumatic clamps are used to complete the fastening and installation of components.
• Vibratory feeders are used to automatically align small components, ensuring a neat supply and improving assembly efficiency.
• After assembly, the products are conveyed to the next station for inspection.

1. Inspection Process

• Products at the inspection stations undergo multiple inspections using equipment such as CCD vision inspection systems, power testers, and high-voltage testers.
• The CCD vision inspection system detects surface defects such as scratches, deformations, and missing components. The inspection system can automatically identify defects and mark non-conforming products.
• Power testers check the electrical performance of the products, including power, voltage, and current parameters to ensure they meet design requirements. High-voltage testers verify the insulation performance and safety of the products.
• Inspection results are fed back to the control center in real time, and non-conforming products are automatically diverted to the rework area for repair.

1. Packaging Process

• Qualified products are conveyed to the packaging station for final packaging. Packaging equipment is adjusted according to product dimensions and packaging requirements to complete labeling, boxing, and sealing operations.
• After packaging, the products are conveyed to the finished goods area, awaiting storage or shipment.

IV. Application Scope Table

V. Advantages

1. High Degree of Automation: By integrating advanced automation equipment such as robots and automatic inspection systems, production efficiency and product quality are significantly enhanced.
2. Strong Flexibility: The assembly line can be quickly adjusted according to the needs of different products, adapting to the production of various small household appliances.
3. Strict Quality Control: Equipped with a variety of high-precision inspection equipment, comprehensive product inspections are conducted to ensure the consistency and stability of product quality.
4. Intelligent Data Management: Through the data acquisition and analysis system, real-time monitoring of production data is achieved, providing a basis for production management and quality improvement.
5. Strong Environmental Adaptability: The system can operate stably in various harsh environments, such as high temperatures and dusty conditions, ensuring continuous production.

VI. Application Scenarios

The general-purpose small household appliance assembly line is widely used in production factories of various small household appliances, especially suitable for enterprises with larger production scales and a wide variety of products. It not only improves production efficiency but also ensures product quality, meeting market demands and is an indispensable production system in modern manufacturing.
