Elevator logistics system，Continuous Vertical Conveyor
Continuous Vertical Conveyor (CVC)
Continuous Vertical Lifting Solution
High-Efficiency Vertical Material Handling · Seamless Multi-Floor Logistics Connection
I. Product Overview
The Continuous Vertical Conveyor (CVC) is a high-efficiency, continuous vertical material handling equipment that enables uninterrupted automatic transportation of goods between multiple floors through circularly running carriers (pallets/chains). Unlike reciprocating vertical conveyors that operate intermittently, the CVC achieves continuous material flow, significantly improving logistics efficiency.
II. Core Structural Features

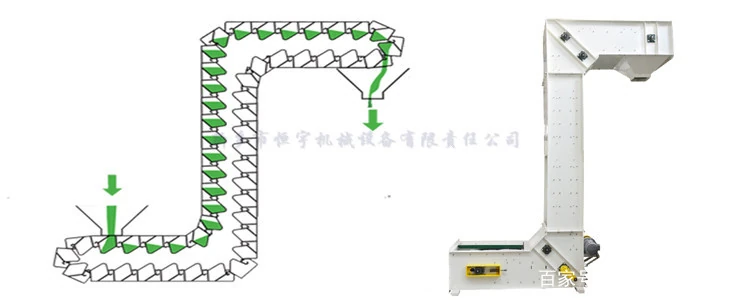

2.1 Z-Type/C-Type Layout Design
- Z-Type Layout: Suitable for scenarios with opposite inlet/outlet directions, offering high space utilization
- C-Type Layout: Suitable for same-direction inlet/outlet configurations, facilitating linear production line arrangement
- Customizable Height: Lifting height range from 2-30 meters, unlimited number of floors
- Modular Design: Quick installation and easy expansion
2.2 Key Component Structure
| Component | Technical Features | Material/Brand |
|---|---|---|
| Circular Conveyor Chain | High-strength alloy steel, wear-resistant lifespan >5 years | Germany IWIS / Japan Tsubaki |
| Carrier Pallet | Anti-slip surface, positioning accuracy ±1mm | Aluminum alloy / Carbon steel with powder coating |
| Drive System | Variable frequency speed control, soft start protection | SEW / NORD geared motors |
| Control System | PLC + Touch screen, MES integration supported | Siemens / Mitsubishi |
III. Technical Specifications
| Technical Parameter | Standard Specification | Optional Configuration |
|---|---|---|
| Max. Lifting Height | 2-30 meters | Customizable for greater heights |
| Conveying Speed | 10-30 m/min (Variable frequency adjustable) | Max. 60 m/min |
| Rated Load | 50kg/pallet (Standard) | Max. 200kg/pallet |
| Pallet Size | 600×400mm (Standard) | Customized per requirements |
| Conveying Cycle | Continuous conveying, no cycle limitation | – |
| Inlet/Outlet Direction | Single-in single-out / Single-in multi-out / Multi-in multi-out | Flexible combination |
| Power Supply | 3-15kW (depending on height and load) | – |
| Equipment Noise | ≤70dB | Low-noise type ≤65dB |
IV. Core Advantages
🚀 High-Efficiency Continuous Conveying
- No Waiting Time: Materials enter continuously without waiting for carriage reciprocation
- High Throughput: 1,000-3,000 pieces/hour (depending on material size)
- 24/7 Operation: Suitable for continuous automated production line operations

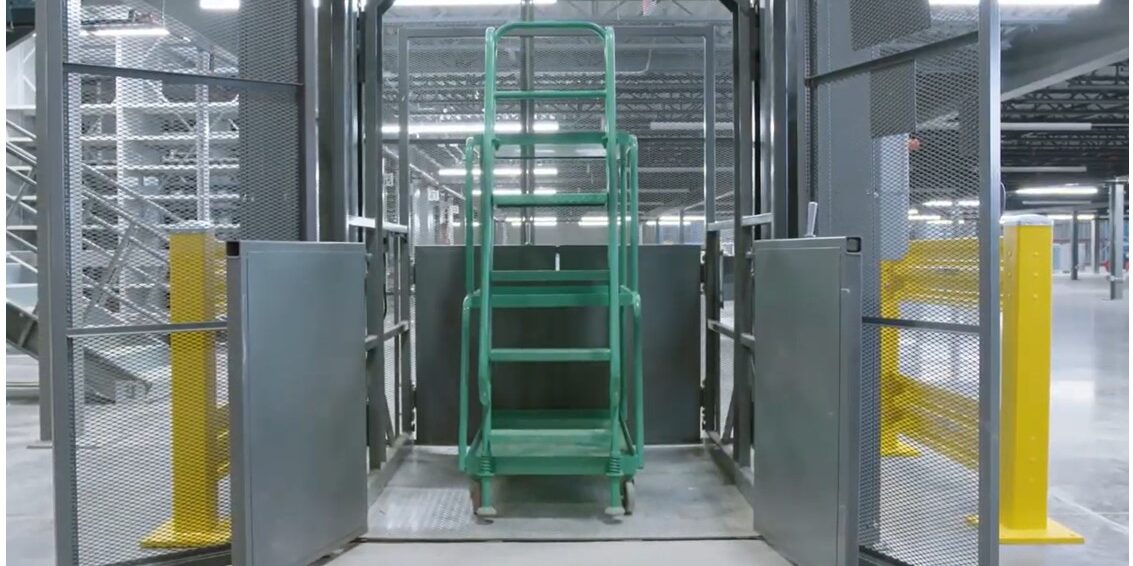

🛡️ High Safety Design
- Fully Enclosed Safety Guard: Compliant with CE safety standards, preventing personnel access
- Multiple Safety Devices: Upper/lower limit switches, anti-fall devices, emergency stop
- Door Interlock: Safety doors at inlets/outlets interlocked with equipment operation
- Fault Self-Diagnosis: PLC automatically detects abnormalities and alarms for shutdown

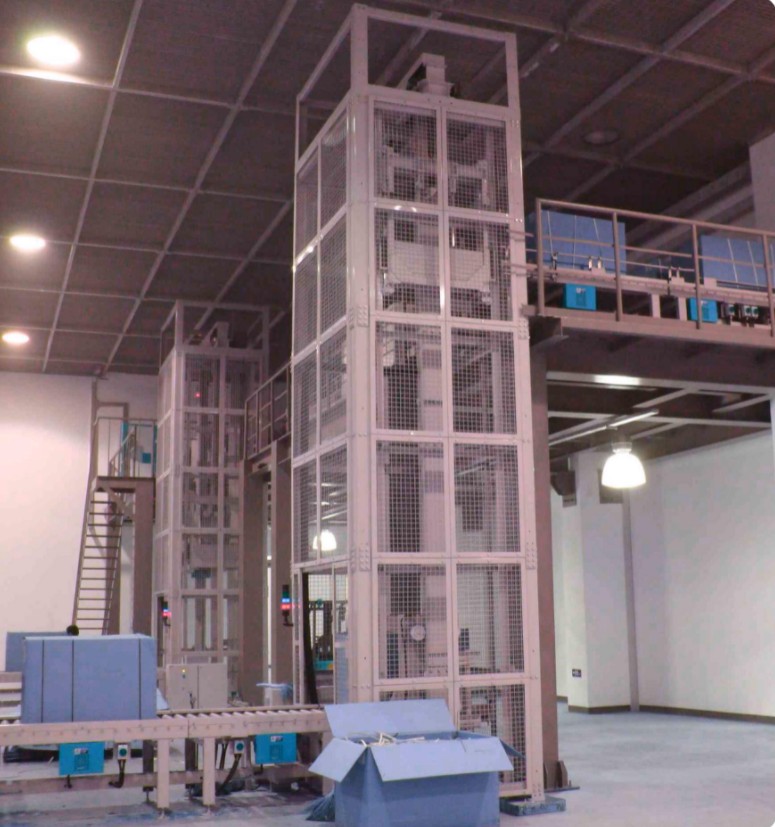

🔄 Intelligent Integration
- Seamless Connection: Automatic interfacing with roller conveyors, belt conveyors, and robotic arms
- Barcode/RFID Recognition: Automatic material identification and intelligent sorting
- MES/WMS System Integration: Real-time operation data upload, remote monitoring supported
- Variable Frequency Energy Saving: Automatic power adjustment based on load, 30% energy saving
V. Typical Application Scenarios

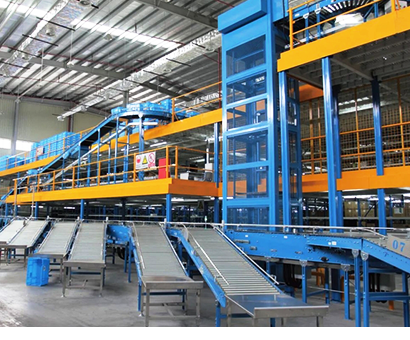

5.1 E-Commerce Logistics Centers
- Application: Cross-floor sorting and conveying of express parcels
- Advantage: Handling peak promotion periods with continuous operation without congestion
- Case Study: After deployment in an e-commerce warehouse, sorting efficiency increased by 150%

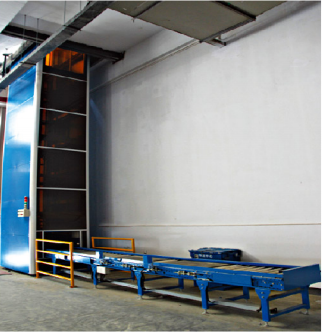

5.2 Manufacturing Production Lines
- Application: Flow of raw materials, semi-finished products, and finished goods between multi-floor factories
- Advantage: Reduces manual handling, achieves JIT (Just-In-Time) production
- Applicable Industries: Automotive parts, electronics manufacturing, pharmaceuticals, food & beverage
5.3 Warehousing & Distribution Centers
- Application: Vertical connection between mezzanine racks, AS/RS systems and picking zones
- Advantage: Maximizes vertical space utilization, improves storage density
- Configuration: Often integrated with shuttle systems and stacker cranes to form automated warehousing systems
VI. Comparison with Reciprocating Vertical Conveyor
| Comparison Item | Continuous Vertical Conveyor | Reciprocating Vertical Conveyor |
|---|---|---|
| Conveying Method | Continuous circulation, uninterrupted | Carriage reciprocation, intermittent |
| Conveying Efficiency | ⭐⭐⭐⭐⭐ Extremely High (1,000-3,000 pcs/hr) | ⭐⭐⭐ Medium (100-300 pcs/hr) |
| Suitable Materials | Small-medium items, regular packaging | Large items, heavy loads, palletized goods |
| Footprint | Compact (vertical layout) | Larger (requires carriage space) |
| Investment Cost | Medium | Lower |
| Recommended Scenario | High-frequency, high-volume conveying | Low-frequency, heavy-load conveying |
VII. Selection Guide
Key Factors to Consider for Selection:
- Material Characteristics
- Unit weight, dimensions (L×W×H)
- Packaging format (cartons, plastic totes, pallets)
- Surface characteristics (fragility, anti-slip requirements)
- Conveying Requirements
- Hourly throughput (pieces/hour)
- Lifting height, number of floors
- Inlet/outlet position relationship (Z-type/C-type/Linear)
- Environmental Conditions
- Ambient temperature (ambient/low-temperature cold storage/high-temperature)
- Cleanliness requirements (standard/food-grade/pharmaceutical-grade)
- Explosion-proof requirements (chemical industry)
- System Integration
- Upstream and downstream conveying equipment types
- Whether sorting and buffering functions are required
- Information system integration requirements (MES/WMS/ERP)
