High-Power Industrial Lasers Structure and Production Lines Applications

Laser systems are composed of several key components, including the pumping source, which energizes the gain medium to achieve population inversion; the gain medium, which amplifies light through stimulated emission; and the resonator, which confines and enhances the light to produce a coherent beam. Additionally, beam combiners merge multiple beams for higher power output, while the control system regulates the laser’s operation for stability and precision.

In industrial production lines, high-power lasers are extensively used for various applications. Laser cutting provides high-precision cuts with minimal heat-affected zones, ideal for metals and other materials. Laser welding offers strong, clean joints with high efficiency. Laser marking creates durable, high-quality identifiers for traceability. These applications enhance production efficiency, product quality, and process automation, making lasers indispensable in modern manufacturing.

A laser is a device that can produce a beam of light with high energy, high directionality, and high monochromaticity. Its structure typically includes several key components: the pumping source, gain medium, resonator, beam combiner, and control system. Below is a detailed explanation of these components:

1. Pumping Source

The pumping source is the energy input component of a laser. Its function is to provide energy to the gain medium to achieve population inversion, which enables stimulated emission. Common types of pumping sources include:

• Electrical Pumping: This involves injecting current into the gain medium to excite atoms or molecules to higher energy levels. It is commonly used in semiconductor lasers and gas lasers.
• Optical Pumping: This uses light from another source (such as a xenon lamp, mercury lamp, or another laser) to irradiate the gain medium, causing it to absorb energy and transition to higher energy levels. This method is often used in solid-state lasers and dye lasers.
• Chemical Pumping: This involves using energy released from chemical reactions to excite the gain medium. This method is less common but is used in some specialized lasers.

2. Gain Medium

The gain medium is the core component of a laser and is the material basis for laser generation. It can absorb energy from the pumping source, causing atoms or molecules to transition to higher energy levels and amplify light through stimulated emission. Common gain media include:

• Solid Gain Media: Such as crystals doped with rare-earth elements (e.g., Nd:YAG) or glass (e.g., erbium-doped fiber).
• Gas Gain Media: Such as carbon dioxide (CO₂) gas, argon ion gas, etc.
• Liquid Gain Media: Such as organic dye solutions.
• Semiconductor Gain Media: Such as gallium arsenide (GaAs), indium phosphide (InP), and other semiconductor materials.

3. Resonator

The resonator is an important part of a laser, consisting of two or more mirrors that provide optical feedback to enhance light amplification and restrict the direction and frequency of the beam. Types of resonators include:

• Fabry-Perot Resonator: The most common type, consisting of two parallel high-reflectivity mirrors forming a stable optical cavity.
• Ring Resonator: Composed of multiple mirrors or lenses, with light traveling in a circular path within the cavity, often used for unidirectional laser output.
• Distributed Feedback Resonator: Utilizes a grating structure to provide optical feedback, commonly used in semiconductor lasers and fiber lasers.

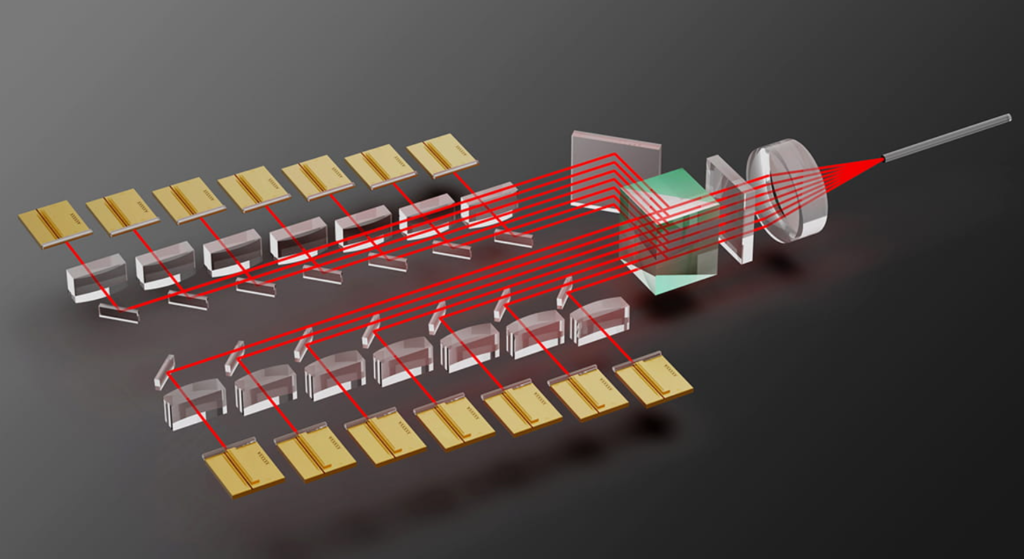

4. Beam Combiner

A beam combiner is an optical component used to merge multiple laser beams into a single beam. It is crucial in multi-pumped lasers or multi-laser systems, enhancing the output power and beam quality of the laser. Common types of beam combiners include:

• Polarization Beam Combiner: Merges two laser beams with different polarization directions into a single beam using polarization characteristics.
• Wavelength Beam Combiner: Merges laser beams of different wavelengths into a single beam by exploiting the differences in wavelength.
• Spatial Beam Combiner: Combines multiple laser beams into a single high-power beam through an optical system.

5. Control System

The control system is the “brain” of the laser, precisely controlling the operation of the laser to ensure stable and efficient performance. The main functions of the control system include:

• Pumping Source Control: Regulates the power, current, or intensity of the pumping source to achieve stable laser output.
• Temperature Control: Uses cooling or heating systems to control the temperature of the gain medium or the entire laser, ensuring it operates within the optimal temperature range.
• Beam Quality Control: Adjusts the optical components of the resonator to optimize the laser beam’s quality, improving its monochromaticity and directionality.
• Safety Protection: Implements overcurrent, overvoltage, and overheating protection functions to prevent damage to the laser due to abnormal conditions.
• User Interface: Provides an operating interface for users to set laser parameters, such as power, pulse width, and repetition rate.

Applications of High-Power Industrial Lasers in Production Lines

High-power industrial lasers have a wide range of applications in production lines, covering multiple industries and processes. Here are the main application areas:

1. Laser Cutting

Laser cutting is one of the most common applications of high-power industrial lasers. High-power lasers can quickly and efficiently cut a variety of materials, including metals, plastics, and glass. The advantages include high cutting accuracy, smooth cut edges, and minimal heat-affected zones, which can significantly improve production efficiency and product quality. For example:

• Thick Metal Plate Cutting: A 6000W continuous-wave fiber laser, controlled by a CNC machine, can cut thick metal plates into complex parts.
• Flexible Material Cutting: Picosecond laser cutting machines are suitable for cutting flexible materials such as cover films, flexible boards, rigid-flex boards, and thin multilayer boards, with almost no heat-affected zone.

2. Laser Welding

Laser welding uses the high energy density of high-power laser beams to quickly melt metal surfaces, joining two metal surfaces together. The advantages include fast welding speed, high weld quality, and minimal deformation. For example:

• Electric Vehicle Battery Component Welding: Pulsed lasers are used to weld sensitive components that require a lower heat-affected zone and shallower penetration.
• Automotive Manufacturing: High-power lasers are widely used in the welding of automotive body parts, significantly improving production efficiency and weld quality.

3. Laser Marking

Laser marking is the process of creating identifiers on parts and products, widely used to achieve industrial traceability. High-power lasers can quickly mark hard metals and can even engrave deeper patterns in the material. For example:

• PCB QR Code Marking: Fully automatic laser marking machines for PCB QR codes are mainly used in the PCB, FPCB, and SMT industries. They mark QR codes on PCBs with high-quality identification, strong anti-counterfeiting capabilities, and no consumables.

4. Laser Cleaning

Laser cleaning uses high-power laser beams to vaporize various contaminants (such as oxides, oils, and coatings), ensuring that metal surfaces are completely clean before operations such as welding, coating, and assembly. For example:

• Phosphate Coating Removal: A 200W pulsed fiber laser is used to remove phosphate coatings from specific areas intended for assembly.
• Large-Area Surface Cleaning: Ultra-high-power pulsed lasers with power up to 3kW are used for cleaning large-area surfaces.

5. Laser Texturing

Laser texturing changes the texture and roughness of metal surfaces to prepare them for processes such as thermal spraying and adhesive bonding. This technique is particularly important in aerospace and automotive manufacturing, significantly improving the quality and efficiency of surface treatment.

6. Laser Cladding

Laser cladding is a surface modification technique that uses a high-power laser beam to melt cladding material (such as metal powder) and deposit it on the surface of a workpiece, forming a cladding layer to enhance the wear resistance and corrosion resistance of the workpiece. This technique is widely used in the aerospace and mechanical manufacturing industries.

7. Additive Manufacturing (3D Printing)

High-power lasers also have extensive applications in additive manufacturing, especially in metal 3D printing. By melting metal powder layer by layer with a laser beam, complex three-dimensional structures can be manufactured. For example:

• Metal 3D Printing: Laserline diode lasers perform exceptionally well in metal 3D printing, achieving high-precision and high-efficiency manufacturing.

8. Laser Power Measurement Technology

Laser power measurement technology has greatly improved production efficiency and product quality on production lines. By monitoring and regulating the output power of lasers in real time, the stability and consistency of processes such as cutting, welding, and marking can be ensured.

Summary

High-power industrial lasers, with their high energy density, high precision, and high speed, play an increasingly important role in modern industrial production. Their applications not only improve production efficiency and product quality but also promote the development of industrial automation and intelligence.
