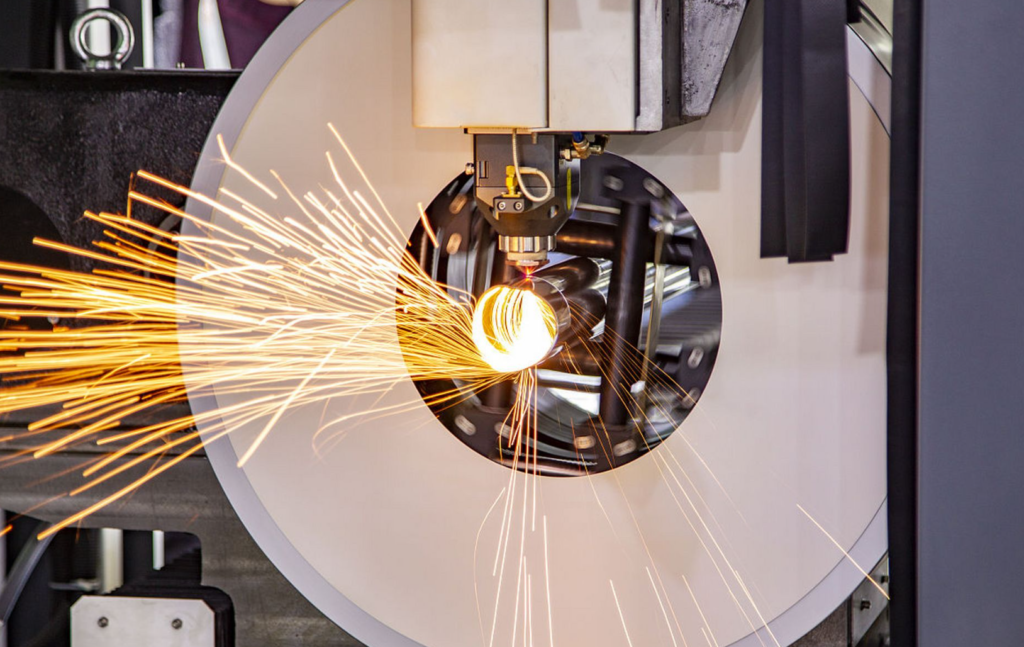

Laser Cutting Machine for Stainless Steel Round Tubes
The Stainless Steel Round Tube Laser Cutting Machine is a high-tech device integrating fiber laser, numerical control, and precision mechanics. It cuts stainless steel tubes with high precision and efficiency, using a focused laser beam to melt and evaporate material. Key features include laser powers up to 20,000W, cutting diameters from φ20mm to φ360mm, and maximum tube lengths up to 12 meters. The machine offers high cutting quality with smooth edges and minimal deformation, making it ideal for applications in architectural decoration, mechanical and automotive manufacturing, and furniture production. Regular maintenance ensures optimal performance and longevity.
Introduction to the Machine
The Stainless Steel Round Tube Laser Cutting Machine is a high-tech device integrating fiber laser technology, numerical control (NC) technology, and precision mechanical engineering. It uses a high-power-density laser beam to irradiate the surface of stainless steel round tubes, causing the material to melt, evaporate, and be blown away by a high-speed gas stream, thereby completing the cutting process. This type of machine is widely used in various fields such as architectural decoration, mechanical manufacturing, automotive manufacturing, and furniture production.
Features of the Machine
- High Precision: The cutting head is equipped with high-precision components and an advanced NC system, as well as professional CAM software, ensuring high cutting accuracy.
- High Efficiency: The cutting speed is fast, making it particularly suitable for mass production.
- Low Operating Cost: The fiber laser generator has a high electro-optical conversion efficiency, resulting in low energy consumption.
- Easy Operation: The NC system is simple and easy to learn, allowing for instant cutting of any designed graphics or text.
- Good Cutting Quality: The edges of the cut are of high quality, with minimal deformation and a smooth, aesthetically pleasing appearance.
Equipment Configuration and Parameter Table
| Parameter Name | Range/Description |
|---|---|
| Laser Power | 1000W – 20000W |
| Cutting Tube Diameter Range | φ20 – φ360mm |
| Maximum Feeding Length of Tube | 6000 – 12000mm (optional 15m) |
| Maximum Single Tube Weight | 1200Kg (100kg/m) |
| Cutting Thickness | Stainless steel 3mm – 30mm |
| Cutting Head Rotation Speed | Maximum 45r/min |
| Positioning Accuracy | XY positioning accuracy ±0.05mm/m, repeatability ±0.02mm |
| Working Stroke | Y-axis 0 – 13000mm; X-axis 0 – 800mm; Z-axis 0 – 500mm |
| Loading and Unloading | Automatic loading + automatic unloading |
| Power Supply Requirements | 3-phase/380V/50Hz, voltage fluctuation <10% |
| Gas Pressure | 0.5 – 0.8MPa |
| Equipment Dimensions | Length 29m x Width 5.2m x Height 3.6m (for reference) |
Working Principle of the Machine
- Place the stainless steel round tube to be cut on the worktable.
- Set the laser power, cutting speed, and gas pressure parameters according to the material type and thickness.
- Start the laser generator. The laser beam is transmitted through an optical fiber, collimated by a collimating mirror, focused by a focusing lens, and then emitted from the nozzle.
- Under the control of the numerical control system, the cutting head moves along the preset path. The high-power density of the laser beam focus melts and evaporates the material.
- Cutting gases such as oxygen and nitrogen are quickly ejected through the nozzle, blowing away the molten material to form a smooth cut.
- After the cutting is completed, turn off the laser generator and clean the equipment.
Application Fields
- Architectural Decoration: For making stainless steel railings, handrails, decorative components, etc.
- Mechanical Manufacturing: For processing stainless steel round tube components, such as mechanical supports and pipe fittings.
- Automotive Manufacturing: For cutting components such as automotive exhaust pipes and body frames.
- Furniture Manufacturing: For producing stainless steel furniture, such as table legs and chair legs.
Maintenance and Care
- Regularly inspect all components of the equipment, such as the laser generator, cutting head, and worktable, to ensure normal operation.
- Regularly clean the exterior of the equipment to keep it tidy.
- Regularly replace consumables of the laser generator, such as laser rods and resonators.
- Check whether the alignment of the laser beam, the adjustment of the cutting head, and the flatness of the worktable are normal.
