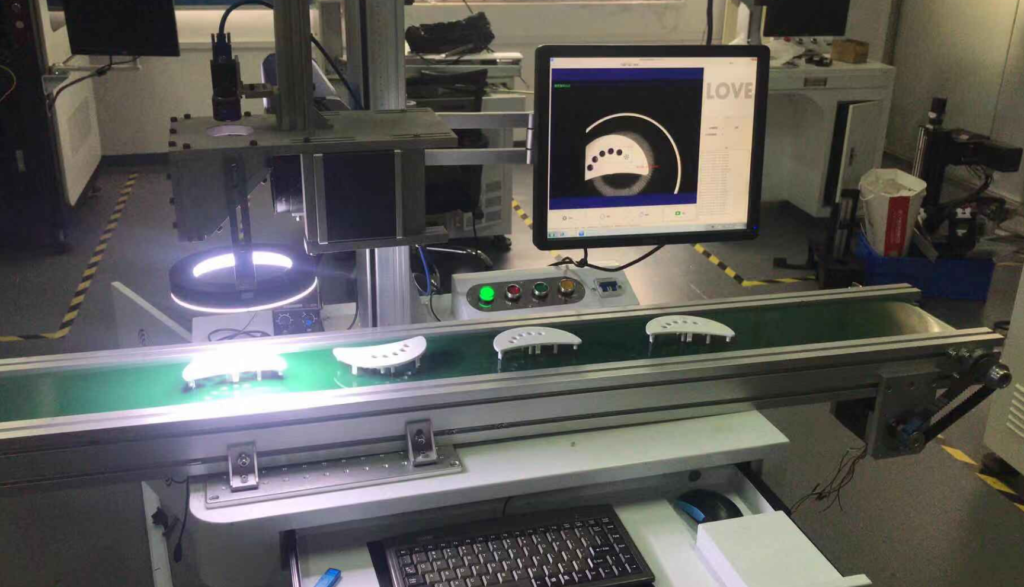

Production Line for Vision-Based Positioning and Laser Marking of Plastic Components
The Vision-Based Positioning and Laser Marking Production Line for Plastic Components is an advanced automated system designed for high-precision marking on plastic parts. It integrates a vision positioning system to accurately identify component locations and orientations, with a laser marking machine that engraves text, patterns, and codes onto the surface. The line features high marking speed (500-3000 mm/s), ±0.05 mm positioning accuracy, and supports various content like serial numbers and QR codes. With full automation from feeding to output, it reduces manual labor, increases efficiency, and ensures consistent quality. Future trends include AI-driven defect detection and integration with production management systems for smarter manufacturing.
Vision-Based Positioning and Laser Marking Production Line for Plastic Components
1. Definition
The Vision-Based Positioning and Laser Marking Production Line for Plastic Components is an automated system designed to perform high-precision laser marking on plastic parts. This line uses a vision positioning system to accurately identify the location and orientation of plastic components, and then employs a laser marking machine to engrave text, patterns, QR codes, and other information onto the surface of the parts. It is widely used in the manufacturing of plastic components for industries such as automotive parts, home appliance casings, and electronic product housings, significantly improving production efficiency and marking quality.
2. Main Components
- Conveying System: Utilizes belt conveying or vibratory bowl feeding to transport plastic components smoothly to the marking station.
- Vision Positioning System: Uses high-resolution cameras and advanced image processing algorithms to capture the position and orientation of plastic components in real time, providing precise positioning data for laser marking.
- Laser Marking Machine: The core equipment that performs marking on the plastic components based on the data provided by the vision positioning system. Different types of lasers, such as fiber lasers or CO₂ lasers, can be selected to meet various material and marking requirements.
- Marking Content Control System: Controls the marking content via computer or PLC, supporting dynamic data input such as serial numbers, production dates, QR codes, etc.
- Quality Inspection System: Uses vision detection or other sensor technologies to inspect the marked plastic components, ensuring that the marking content is clear and accurate.
- Finished Product Output System: Transports the marked plastic components to the next process or collection area.
3. Working Principle
- Component Feeding: Plastic components are placed on the conveyor belt either manually or through an automatic feeding device.
- Conveying and Positioning: The conveying system moves the plastic components to the working area of the vision positioning system, which captures the position and orientation of the components.
- Laser Marking: The laser marking machine performs marking on the plastic components based on the data provided by the vision positioning system.
- Quality Inspection: The inspection system checks the marked components. If any do not meet quality standards, they are automatically removed or an alarm is triggered.
- Finished Product Output: Qualified components are transported to the next process via the conveying system.
4. Technical Parameters Table
| Parameter Category | Parameter Name | Parameter Value |
|---|---|---|
| Conveying System | Conveying Speed | 5-30 meters/minute |
| Conveying Method | Belt Conveying / Vibratory Bowl Feeding | |
| Vision Positioning System | Camera Resolution | 2MP / 5MP |
| Positioning Accuracy | ±0.05 mm | |
| Laser Marking Machine | Laser Type | Fiber Laser / CO₂ Laser |
| Laser Power | 10-100 watts | |
| Marking Speed | 500-3000 mm/second | |
| Marking Range | 100mm x 100mm / 200mm x 200mm | |
| Marking Content Control System | Control Method | Computer Control / PLC Control |
| Supported Content | Text, Numbers, Dates, QR Codes, Barcodes | |
| Quality Inspection System | Inspection Method | Vision Inspection |
| Inspection Accuracy | ±0.05 mm | |
| Working Environment | Working Temperature | 10-40°C |
| Working Humidity | 30%-80% (non-condensing) | |
| Power Requirements | Power Voltage | 220V / 380V, 50Hz |
5. Advantages
- High Precision: The vision positioning system accurately identifies the location and orientation of plastic components, ensuring precise marking.
- High Efficiency: The laser marking process is fast, meeting the needs of large-scale production.
- High Degree of Automation: Full automation from feeding to finished product output reduces manual intervention and increases production efficiency.
- Flexibility: Supports a variety of marking content and formats to meet different production requirements.
- Reliable Quality: Equipped with a quality inspection system to ensure the marking quality of each plastic component.
6. Application Scenarios
- Automotive Parts Manufacturing: Used for marking interior and exterior automotive components, such as nameplates and serial numbers.
- Home Appliance Manufacturing: Used for marking appliance casings, such as brand logos and production dates.
- Electronics Manufacturing: Used for marking electronic product housings, such as QR codes and barcodes.
- Medical Device Manufacturing: Used for marking medical device components to ensure clear and durable identification.
7. Future Development Trends
With continuous technological advancements, the Vision-Based Positioning and Laser Marking Production Line for Plastic Components will evolve towards higher levels of intelligence and automation. Future developments may include more advanced features such as AI-driven defect detection, remote monitoring and diagnostics, and deeper integration with enterprise production management systems (MES) to further enhance production efficiency and quality control.
In summary, the Vision-Based Positioning and Laser Marking Production Line for Plastic Components is an essential part of modern manufacturing technology. It provides an efficient, precise, and reliable marking solution for plastic components, driving technological progress in the manufacturing industry.
