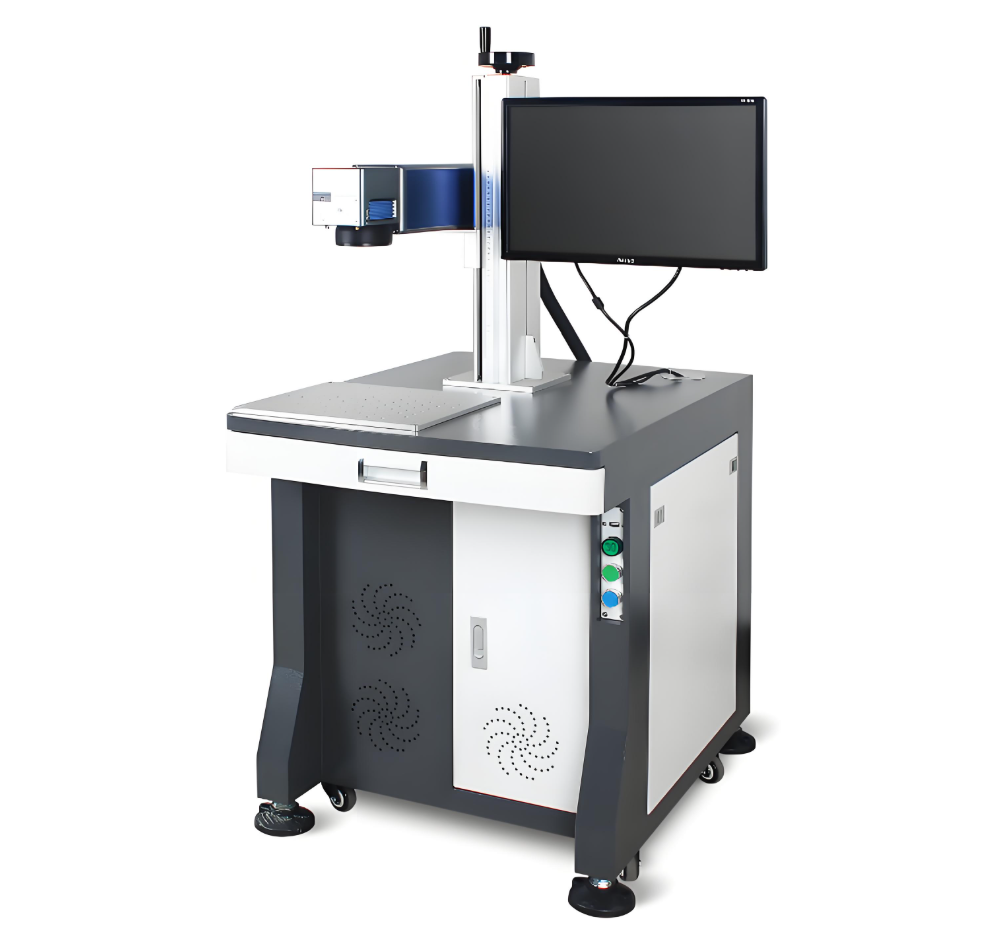

Selection of Laser Marking Equipment for Assembly Lines
The following is an analysis and summary table for the selection of laser marking equipment for assembly lines, considering factors such as laser power, type, and application scenarios:
Laser Power
- Low Power (10W and below): Suitable for marking applications with low requirements, soft materials, or heat-sensitive materials, such as marking on plastics and paper packaging.
- Medium Power (10W-30W): Widely applicable, meeting the conventional marking needs of most metals and plastics, such as marking on electronic components and mechanical parts.
- High Power (above 30W): Ideal for deep marking, hard materials, or large-area rapid marking, such as deep engraving on metal molds and large mechanical components.
Laser Type
- Fiber Laser: With a wavelength of 1064nm, it offers good beam quality and high electro-optical conversion efficiency. It is maintenance-free and suitable for marking metals and some non-metal materials, such as stainless steel, aluminum alloy, and plastics. It is commonly used for marking various industrial parts.
- CO₂ Laser: Featuring a wavelength of 10.6μm and a wide range of power options, it is suitable for non-metal materials, including wood, leather, plastics, and glass. It is often used for marking on food and pharmaceutical packaging.
- UV Laser: With a wavelength of 355nm, it has a small spot size and minimal heat effect, providing high precision. It is suitable for high-precision, ultra-fine marking on materials such as electronic chips, PCB boards, medical devices, jewelry, and glass.
- Green Laser: With a wavelength of 532nm, it offers good marking effects on materials that have weak absorption of infrared light, such as certain plastics and metal oxides.
Application Scenarios
- Metal Marking: Fiber lasers are the preferred choice due to their good beam quality, which allows for efficient marking on metal surfaces. They are suitable for marking various metal parts, such as automotive components and mechanical molds.
- Non-Metal Marking: CO₂ lasers are suitable for marking non-metal materials like wood, leather, plastics, and glass. They are commonly used in food packaging and craft production. UV lasers are more suitable for high-precision marking with minimal heat effect on non-metal materials, such as electronic components and medical devices.
- High-Precision, Ultra-Fine Marking: UV lasers, with their extremely small spot size, can achieve micron-level precision for marking patterns and text. They are suitable for applications such as electronic chips, PCB boards, and jewelry that require fine processing.
- Deep Marking or Large-Area Rapid Marking: High-power fiber lasers or CO₂ lasers can meet the needs for deep marking or large-area rapid marking, such as deep engraving on metal molds and marking large mechanical components.
Summary Table
| Selection Criteria | Low Power | Medium Power | High Power | Fiber Laser | CO₂ Laser | UV Laser | Green Laser | Metal Marking | Non-Metal Marking | High-Precision, Ultra-Fine Marking | Deep Marking or Large-Area Rapid Marking |
|---|---|---|---|---|---|---|---|---|---|---|---|
| Applicability | Simple marking on plastics and paper packaging | Conventional marking on most metals and plastics | Deep marking, hard materials, or large-area rapid marking | Metals and some non-metal materials | Non-metal materials | High-precision, ultra-fine marking | Materials with weak absorption of infrared light | Fiber laser | CO₂ laser, UV laser | UV laser | High-power fiber laser, CO₂ laser |
| Advantages | Low equipment cost, low energy consumption | Wide application range, high cost-effectiveness | Deep marking, fast speed | Good beam quality, maintenance-free | Wide power range, suitable for various non-metal materials | High precision, minimal heat effect | Good marking effect on specific materials | Good beam quality, excellent marking results | Suitable for various non-metal materials | High precision, fine marking | Deep marking, fast speed |
| Disadvantages | Limited marking capability | Ineffective for hard materials or deep marking | High equipment cost, high energy consumption | Ineffective for some non-metal materials | Ineffective for metal materials | High equipment cost, relatively low power | Relatively low power | Limited effectiveness on non-metal materials | Limited effectiveness on metal materials | Relatively slow marking speed | Limited capability for fine marking |
When selecting equipment in practice, other parameters such as marking speed, frequency, and spot size should also be considered, as well as the stability, reliability, ease of operation, and after-sales service of the equipment.
The Characteristics and Types of the Integration of Assembly Lines and Laser Marking Equipment
I. Characteristics of Integrated Use
- High Degree of Automation
- Characteristics: Assembly lines are typically highly automated, and laser marking equipment can be seamlessly integrated into these automated production lines. Through programming and control systems, laser marking equipment can automatically receive instructions and precisely mark workpieces as they pass by, without the need for manual intervention.
- Advantages: Reduces manual operation, increases production efficiency, minimizes human error, and ensures the consistency and accuracy of marking.
- Example: In an automotive parts assembly line, laser marking equipment can automatically mark serial numbers and production dates on engine components, ensuring that each part has a unique identification.
- High Precision and Efficiency
- Characteristics: Laser marking equipment can mark with extremely high precision, typically achieving micron-level accuracy. Moreover, laser marking is very fast and can mark a large number of workpieces in a short period of time.
- Advantages: Increases production efficiency, ensures marking quality, and meets the needs of large-scale production.
- Example: In an electronic component assembly line, UV laser marking equipment can quickly and precisely mark tiny electronic chips, ensuring that each chip has a clear identification.
- Flexibility and Scalability
- Characteristics: Laser marking equipment can be flexibly configured according to different production requirements. By adjusting laser parameters (such as power, frequency, spot size, etc.), it can adapt to different materials and marking requirements.
- Advantages: Adapts to a variety of production scenarios, reduces equipment investment costs, and enhances the versatility of the equipment.
- Example: In a medical device assembly line, laser marking equipment can adjust parameters according to different materials of medical devices (such as stainless steel, titanium alloy, etc.) to perform precise marking.
- Non-Contact Processing
- Characteristics: Laser marking is a non-contact processing method. The laser beam directly acts on the surface of the workpiece after focusing and does not exert mechanical stress on the workpiece.
- Advantages: Avoids mechanical damage to the workpiece surface and is suitable for marking precision and fragile workpieces.
- Example: In a glass product assembly line, laser marking equipment can mark without contacting the glass surface, avoiding scratches and damage to the glass.
- Environmentally Friendly and Energy-Efficient
- Characteristics: Laser marking equipment generates almost no waste during operation and does not require the use of ink or other chemicals, meeting environmental requirements. Additionally, laser equipment has relatively low energy consumption and low operating costs.
- Advantages: Complies with modern industry’s environmental and energy-saving requirements and reduces production costs.
- Example: In a food packaging assembly line, laser marking equipment can replace traditional inkjet coders, reducing ink usage and minimizing environmental pollution.
II. Types of Integrated Use
- Fiber Laser Marking Equipment
- Characteristics: With a wavelength of 1064nm, it has good beam quality, high electro-optical conversion efficiency, and is maintenance-free. It is suitable for marking metals and some non-metal materials.
- Applications: Widely used for marking metal parts, such as automotive components and mechanical molds.
- Example: In an automotive assembly line, fiber laser marking equipment is used to mark serial numbers and production dates on engine components.
- CO₂ Laser Marking Equipment
- Characteristics: With a wavelength of 10.6μm and a wide range of power options, it is suitable for non-metal materials, such as wood, leather, plastics, and glass.
- Applications: Commonly used for marking food and pharmaceutical packaging, as well as handicrafts.
- Example: In a food packaging assembly line, CO₂ laser marking equipment is used to mark production dates and expiration dates on food packaging.
- UV Laser Marking Equipment
- Characteristics: With a wavelength of 355nm, it has a small spot size, minimal heat effect, and high precision, making it suitable for high-precision, ultra-fine marking.
- Applications: Suitable for materials such as electronic chips, PCB boards, medical devices, jewelry, and glass.
- Example: In an electronic component assembly line, UV laser marking equipment is used to mark tiny electronic chips, ensuring that each chip has a clear identification.
- Green Laser Marking Equipment
- Characteristics: With a wavelength of 532nm, it provides good marking effects on materials that have weak absorption of infrared light.
- Applications: Suitable for marking materials such as certain plastics and metal oxides.
- Example: In a plastic product assembly line, green laser marking equipment is used to mark trademarks and identifications on plastic products.
Summary
The integration of assembly lines and laser marking equipment features a high degree of automation, high precision, high efficiency, flexibility, non-contact processing, environmental friendliness, and energy efficiency. Depending on different production requirements, fiber laser, CO₂ laser, UV laser, or green laser marking equipment can be selected to meet various material and marking requirements. This integration not only increases production efficiency but also ensures marking quality, meeting the high standards of modern industrial production.
