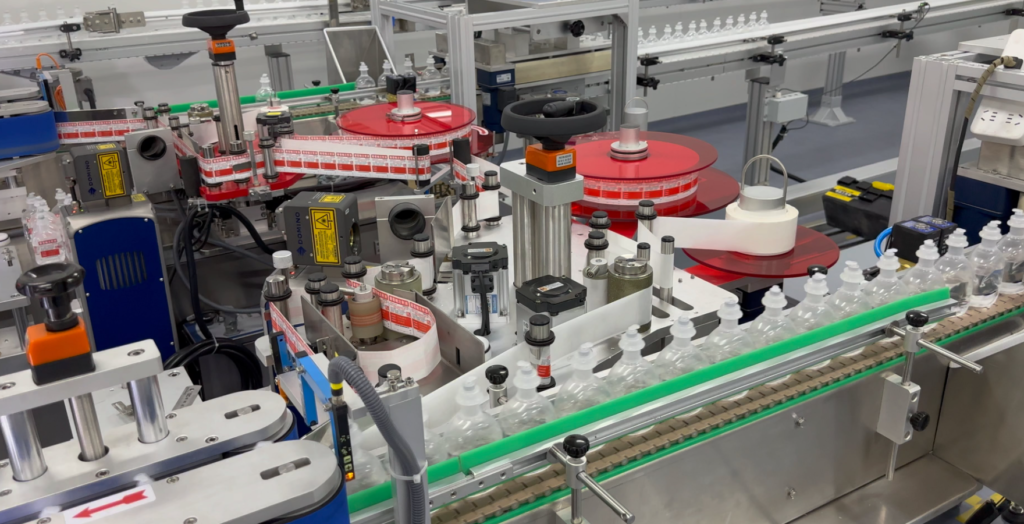

High-Speed Labeling Automation Production Line for Bottles
The High-Speed Labeling Automation Production Line for Bottles is an advanced system designed to efficiently label various bottles in industries like food, beverage, and pharmaceuticals. It integrates conveying systems, precise positioning devices, labeling machines, and quality inspection systems to automate the entire process, from bottle feeding to finished product output. With labeling speeds up to 800 bottles per minute and high accuracy (±1 mm), it ensures consistent label placement. The system is adaptable to different bottle shapes and label types, reducing manual labor and enhancing production efficiency. Future trends include AI-driven quality control and deeper integration with production management systems for smarter manufacturing.
High-Speed Labeling Automation Production Line for Bottles
1. Definition
The High-Speed Labeling Automation Production Line for Bottles is a specialized automated system designed for the rapid and efficient labeling of various types of bottles. By integrating advanced conveying, positioning, labeling, and inspection technologies, it achieves full automation of the entire process, from bottle feeding, positioning, labeling to finished product output. It is widely used in industries such as food, beverage, pharmaceuticals, and cosmetics.
2. Main Components
- Conveying System: Transports bottles from one station to another, typically using belt or chain conveyors.
- Bottle Positioning Device: Ensures that bottles are in the correct position and orientation before labeling, improving labeling accuracy and consistency.
- Labeling Machine: The core equipment responsible for accurately applying labels to the bottle surface. It can use various labeling methods such as pressure-sensitive or hot-melt adhesive labeling.
- Label Supply System: Provides a stable supply of labels to the labeling machine, ensuring continuous and accurate label dispensing.
- Quality Inspection System: Uses vision detection technology or other sensors to check the quality and position of the labels.
- Control System: Integrates PLCs and touchscreens to automate and monitor the entire production line.
- Finished Product Output System: Transports labeled bottles to subsequent packaging or storage areas.
3. Working Principle
- Bottle Feeding: Bottles are placed on the conveyor belt either manually or through an automatic feeding device.
- Conveying and Positioning: The conveying system moves the bottles to the positioning device, where they are held in the correct position.
- Labeling Operation: The labeling machine, following a preset program, picks up labels from the label supply system and applies them to the bottle surface.
- Quality Inspection: The inspection system checks the labeled bottles. If any do not meet quality standards, they are automatically removed or an alarm is triggered.
- Finished Product Output: Qualified bottles are transported to the next process via the conveying system.
4. Technical Parameters Table
| Parameter Category | Parameter Name | Parameter Value |
|---|---|---|
| Conveying System | Conveying Speed | 30-120 meters/minute |
| Conveying Method | Belt Conveying / Chain Conveying | |
| Labeling Machine | Labeling Speed | 200-800 bottles/minute |
| Labeling Accuracy | ±1 mm | |
| Labeling Method | Pressure-Sensitive / Hot-Melt Adhesive | |
| Label Supply System | Label Size | 20-200 mm (length) x 10-150 mm (width) |
| Label Roll Diameter | Up to 300 mm | |
| Quality Inspection System | Inspection Method | Vision Inspection |
| Inspection Accuracy | ±0.5 mm | |
| Control System | Control Method | PLC + Touchscreen |
| Power Requirements | 220V / 380V, 50Hz | |
| Working Environment | Working Temperature | 0-40°C |
| Working Humidity | 30%-80% (non-condensing) |
5. Advantages
- High Efficiency: Fast labeling speed meets the needs of large-scale production.
- High Precision: Consistent label placement with high accuracy.
- High Degree of Automation: Full automation from feeding to finished product output reduces manual intervention.
- Flexibility: Adaptable to different bottle shapes and sizes, as well as various label types.
- Reliable Quality: Equipped with quality inspection systems to ensure the labeling quality of each bottle.
6. Application Scenarios
- Food and Beverage Industry: Labeling of beverage bottles, soy sauce bottles, cooking oil bottles, etc.
- Pharmaceutical Industry: Labeling of medicine bottles, health supplement bottles, etc.
- Cosmetics Industry: Labeling of perfume bottles, skincare product bottles, etc.
- Daily Chemicals Industry: Labeling of shampoo bottles, laundry detergent bottles, etc.
7. Future Development Trends
With continuous technological advancements, the High-Speed Labeling Automation Production Line for Bottles will evolve towards higher levels of intelligence and automation. Future developments may include more advanced features such as AI-driven defect detection, remote monitoring and diagnostics, and deeper integration with enterprise production management systems (MES) to further enhance production efficiency and quality control.
In summary, the High-Speed Labeling Automation Production Line for Bottles is an essential part of modern packaging technology. It provides an efficient, precise, and reliable labeling solution for various industries, driving technological progress in the packaging sector.
