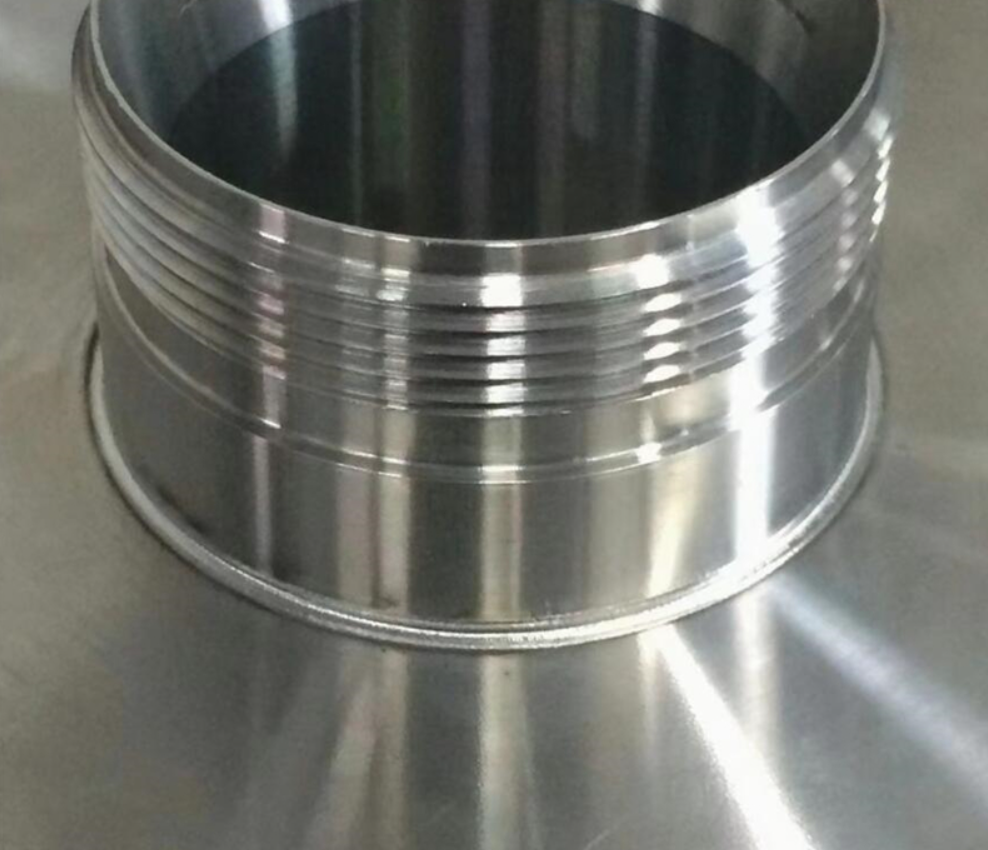

Stainless Steel Joint Laser Welding and Automated Production Line
Stainless steel joint laser welding combined with automated production lines offers a highly efficient and precise manufacturing solution. Key parameters include laser power (50W–4kW), welding speed (0.1–10m/min), pulse parameters (width, frequency, duty cycle), defocusing amount, and protective gas flow. The process involves material preparation, clamping, tack welding, edge misalignment adjustment, formal welding, and post-weld inspection. Automated lines are designed for efficiency, reliability, safety, and scalability. They are widely used in automotive, aerospace, new energy vehicles, and medical devices. Future trends include technological innovation, expanded application fields, and deeper integration of automation and intelligence.
Stainless Steel Joint Laser Welding and Automated Production Line
I. Laser Welding Technical Parameters
- Laser Power
- Range: 50W to 4kW.
- Example:
- For 0.1mm thick 316L stainless steel sheets, pulse laser welding with low current and long pulse width is suitable.
- For 5mm thick stainless steel laser oscillation welding, laser power needs to be adjusted according to specific requirements.
- Welding Speed
- Range: 0.1m/min to 10m/min.
- Example: For 5mm thick stainless steel laser oscillation welding, increasing the welding speed appropriately helps reduce porosity.
- Pulse Parameters
- Pulse Width: Adjusted according to material thickness and welding requirements.
- Pulse Frequency: For 5mm thick stainless steel laser oscillation welding, a pulse frequency of 100 to 300Hz can balance low porosity and good weld seam formation.
- Duty Cycle: Adjusted according to specific welding requirements.
- Defocusing Amount
- Range: Adjustable positive and negative.
- Example: Negative defocusing can achieve greater penetration depth.
- Protective Gas
- Gas Type: High-purity argon is commonly used.
- Flow Rate: Generally 14 to 16L/min.
II. Welding Process
- Material Preparation
- Clean the stainless steel welding seam area to remove splatter and oil.
- Clamping and Assembly
- Clamp the parts to be welded on the fixture, ensuring the assembly gap is no more than 0.1mm.
- Tack Welding
- Use pulse laser welding for tack welding to prevent the welding seam gap from increasing during welding.
- Tack Welding Parameters: Laser power 550W, defocusing amount +4.8mm, welding speed adjusted according to specific requirements.
- Adjusting Edge Misalignment
- After tack welding, adjust the edge misalignment to ensure it is no more than 0.1mm.
- Formal Welding
- Perform laser welding according to the optimized parameters.
- Post-Weld Inspection
- Conduct post-weld inspection to ensure the integrity and quality of the weld seam.
III. Design Principles of Automated Production Line
- Applicability Principle
- The design of the production line must closely revolve around the characteristics of the product and the production process.
- For example, for complex and high-precision products like engine cylinder bodies, the design of the automated production line should consider high-precision machining equipment, precise positioning systems, and stable conveying devices.
- Reliability Principle
- An automated production line typically consists of numerous mechanical, electronic, and control devices. A failure in any link can lead to the entire production line’s stagnation.
- Use high-quality, market-validated equipment and components during design.
- Set up redundant backups for key equipment to ensure quick switching in case of failure.
- Efficiency Principle
- Optimize the process to eliminate unnecessary steps and operations.
- Plan the production line’s cycle reasonably to ensure a coordinated working rhythm between all equipment and workstations.
- Safety Principle
- Install comprehensive safety protection devices, such as emergency stop buttons, safety light curtains, and guardrails.
- Provide safety training for operators and establish strict operating procedures.
- Scalability Principle
- Reserve interfaces and space for future expansion during the initial design to facilitate the addition of new equipment, adjustment of the process flow, or introduction of new technologies.
IV. Application Fields
- Automotive Manufacturing
- Used for body welding, chassis welding, etc.
- Aerospace
- Used for welding structural components of aircraft.
- New Energy Vehicles
- In battery manufacturing for new energy vehicles, laser welding, with its high precision and deep penetration welding capabilities, has become a key manufacturing process.
- Medical Devices
- Used for precision welding of medical devices.
V. Future Development Trends
- Technological Innovation and Efficiency Improvement
- Higher power, smaller size, and higher electro-optical conversion efficiency lasers will increase welding speed and quality.
- Expansion of Application Fields
- Laser welding technology will further expand into high-end fields such as new energy, aerospace, and biomedical.
- Deep Integration of Automation and Intelligence
- Laser welding technology will be deeply integrated with robotic technology, artificial intelligence, and the Internet of Things to form highly automated and intelligent welding production lines.
Laser Welding Parameters for Stainless Steel Joints
| Parameter | Unit | Value Range | Notes |
|---|---|---|---|
| Laser Power | W | 50 – 4000 | Adjusted according to the thickness of the stainless steel and welding requirements. For example, thin sheets (0.1mm) are suitable for low power (50W), while thick plates (5mm) may require high power (4000W). |
| Welding Speed | m/min | 0.1 – 10 | The faster the speed, the less heat input, which is suitable for thin sheets or high-precision welding. The welding speed for thick plates is usually slower (1-2m/min). |
| Pulse Width | ms | 1 – 20 | Pulse width affects the formation of the molten pool and heat input. Short pulses (1-5ms) are suitable for thin sheets, while long pulses (10-20ms) are suitable for thick plates. |
| Pulse Frequency | Hz | 100 – 300 | High frequency (200-300Hz) helps reduce porosity and is suitable for thick plate welding. The frequency for thin sheet welding can be appropriately reduced (100-150Hz). |
| Duty Cycle | % | 10 – 50 | The duty cycle affects the duration of laser energy. Thin sheet welding can have a low duty cycle of 10%, while thick plate welding can have a high duty cycle of 50%. |
| Defocusing Amount | mm | ±10 | Negative defocusing (-10mm) can achieve greater penetration depth, suitable for thick plate welding; positive defocusing (+10mm) is suitable for thin sheet welding to reduce heat input. |
| Protective Gas Flow | L/min | 14 – 16 | High-purity argon (99.9%) is used, with a flow rate generally at 14-16L/min to ensure the protection of the weld area. |
| Weld Width | mm | 0.1 – 5 | Adjusted according to welding requirements and material thickness. Thin sheet weld width is generally 0.1-1mm, while thick plate weld width can reach 5mm. |
| Welding Depth | mm | 0.1 – 5 | Thin sheet welding depth is generally 0.1-1mm, while thick plate welding depth can reach 5mm. The specific depth needs to be adjusted according to the material and process. |
| Welding Precision | mm | ±0.1 – ±0.5 | The precision range is ±0.1mm to ±0.5mm. For high-precision welding (such as medical devices), the precision can reach ±0.1mm. |
Example Parameters
- Thin Sheet (0.1mm thick 316L Stainless Steel):
- Laser Power: 50W
- Welding Speed: 10m/min
- Pulse Width: 1ms
- Pulse Frequency: 100Hz
- Duty Cycle: 10%
- Defocusing Amount: +4.8mm
- Protective Gas Flow: 14L/min
- Thick Plate (5mm thick Stainless Steel):
- Laser Power: 4000W
- Welding Speed: 1m/min
- Pulse Width: 20ms
- Pulse Frequency: 300Hz
- Duty Cycle: 50%
- Defocusing Amount: -10mm
- Protective Gas Flow: 16L/min
These parameters can be adjusted according to specific welding requirements and material characteristics to ensure welding quality and efficiency.
